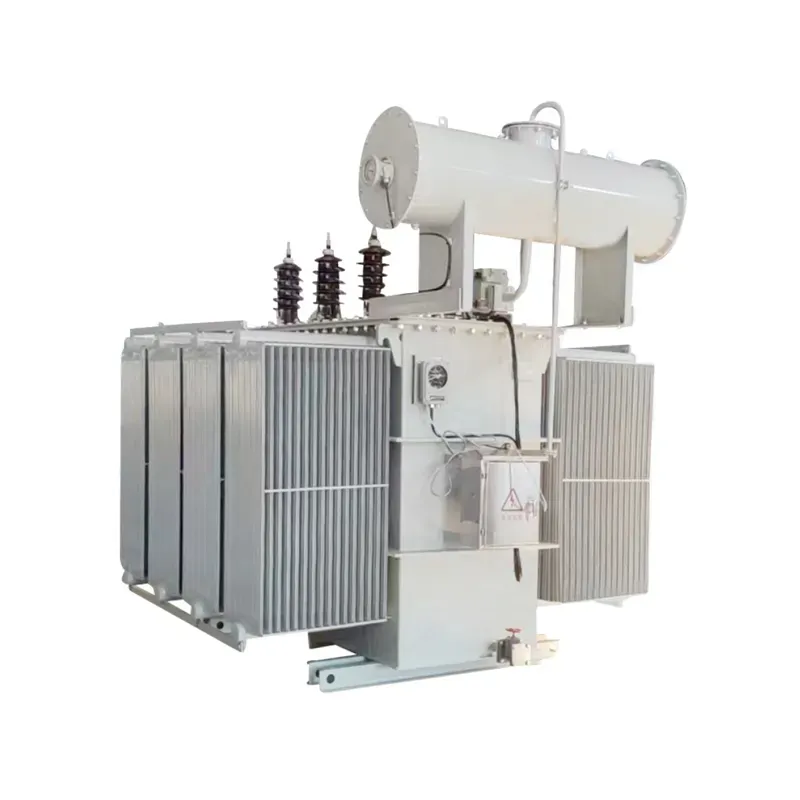

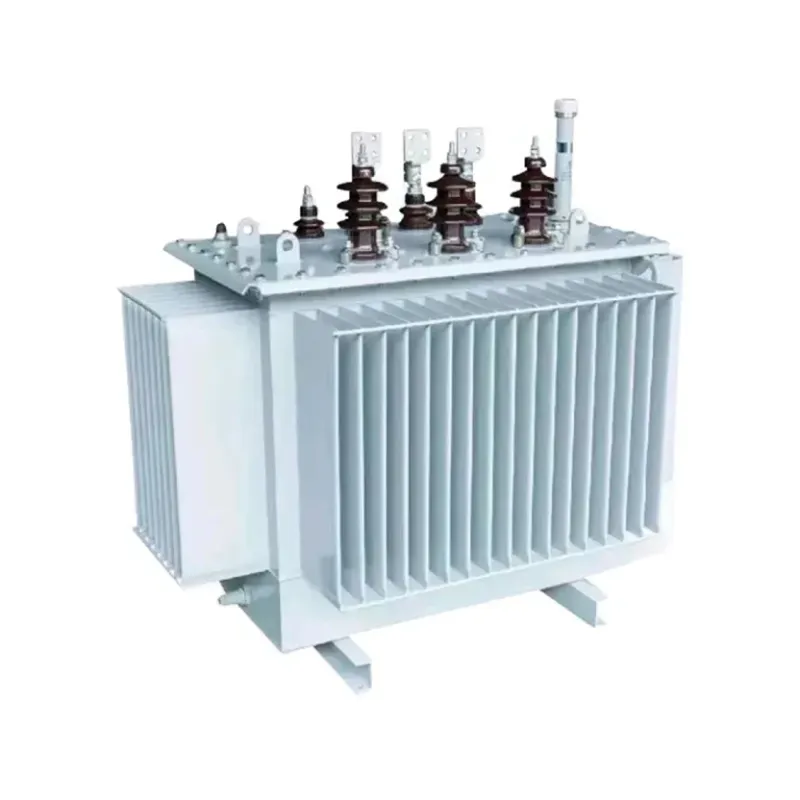

A 400kVA oil transformer is a transformer that uses an oil-cooled and insulated system to provide electrical power to an entire facility or area. The 400kVA rating makes it one of the most commonly used types of transformers for both commercial and industrial applications because of the high degree of energy efficiency and reliability. In this article, we will look at the basic elements of a 400kVA oil transformer, how it works, the parts within the transformer, and the benefits of the transformer. By doing so, we hope to give our readers enough information so that they can see just how important this type of transformer is in various locations.
Understanding the Basics of a 400KVA Oil Transformer
Quote: 400 KVA means that the electrical transformer has a maximum capability of supplying up to 400 KVA. This is an indication of how much load (weight) that the electrical transformer is able to deliver before losing operational performance. In addition, the oils contained within each of these electrical transformers perform two functions, which include cooling down electrical components of the transformer and insulating them from each other, allowing the transformer to run more efficiently.
Components of a 400KVA Oil Transformer
A standard 400KVA oil transformer consists of key components including:
1. Transformer Core: Silicon steel is commonly utilized in creating the core for the magnetic assembly. The use of silicon steel also aids in enhancing performance by minimizing waste due to energy loss.
2. Windings: To produce an electromagnetic field that transforms voltage levels, winding must be made from either copper or aluminum.
3. Insulating Oil: Insulating oil serves as both a coolant and an insulator to prevent heat and electrical discharge from causing breakdowns.
4. Tap Changer: Adjustable voltage capability insures consistent output, regardless of changing load requirements.
How Does a 400KVA Oil Transformer Work?
The principle of operation for a 400 kVA oil transformer is based on the phenomenon of electromagnetic induction. An alternating current (ac) through the primary winding produces a magnetic field, which causes an induced voltage in the secondary winding of the transformer. The transformer can therefore either increase or decrease voltages, depending on the ratio of the windings, and as such is an essential part of any electricity distribution network.
The transformer has an insulating fluid that helps conduct the electric current through the winding of the transformer but also circulates throughout the windings to dissipate heat generated by the operation of the transformer. The insulating fluid further insulates the electrical connections or wires from one another and from the core of the transformer, allowing for the safe and smooth operation of the transformer.
How Much Oil Is in a 400 KVA Transformer?
An oil cooled transformer rated at 400KVA will generally have an oil capacity of 150 – 250 litres depending on design/manufacturer. Oil levels must be maintained to provide efficient cooling and insulation and allow the transformer to operate under different load conditions. If not maintained, transformers may run at higher than normal temperatures due to insufficient oil.
What Are the 4 Types of Transformers?
Transformers come in various configurations, but the four primary types include:
1. Step-Up Transformer: Increases voltage from primary to secondary winding.
2. Step-Down Transformer: Decreases voltage from primary to secondary winding.
3. Isolation Transformer: Safeguards from electric shock through use of a transformer to separate an electrical circuit from its supply source.
4. Auto Transformer: There is only one coil used for primary and secondary purposes (combined). In some cases, this has allowed for a much smaller design or application.
FAQ about 400KVA Oil Transformers
Q: How often should oil in a 400KVA oil transformer be maintained or replaced?
A: Transformer oil must be surveyed every year for signs of: A) contamination, B) moisture (presence of water), C) degradation.
If the transformer oil quality is defined and meets the required standard for the tests, it can be years before it would require replacement. Therefore, if the oil quality test shows signs of contamination or degradation, the oil should be replaced to prevent loss of insulation capabilities or cooling performance.
Q: Is a 400KVA oil transformer suitable for outdoor use?
Yes, a 400KVA oil-filled transformer is normally constructed to be used outdoors. The oil serves as both an insulating and cooling medium, creating a strong and well-built transformer that can work in most types of weather. Routine maintenance and inspection are necessary for the transformer to continue functioning outdoors for many years.
Q: Can oil leaks from a transformer be repaired?
A: In general, transformers can have repaired leaking oil. It is important for the cause of a leaking transformer to be determined and the overall health of the transformer assessed. Minor leaks can be repaired by replacing seals or welding, whereas a major oil leak requires immediate professional intervention to prevent potential damage.
Advantages of Using 400KVA Oil Transformers
The operational advantages of 400KVA oil transformers include:
1. Heat is dissipated efficiently. The oil inside keeps the transformer cool and thus makes it work longer and better.
2. Insulating Properties: Good insulation reduces electrical failure due to its ability to reduce thermal transfer through convection, conduction, and radiation.
3. Reliable Performance: Ideal for operating in diverse environments – such as those with high humidity or dust levels.
4. Decreased maintenance costs: Dry type oil transformers require less frequency of maintenance than oil transformers.
Conclusion
It’s important for any company or industry that uses effective methods to distribute electricity to know how a 400 KVA oil type transformer works. A 400 KVA oil transformer provides very good cooling and insulation properties and can handle large amounts of electricity with little voltage drop across it; therefore, any business should consider purchasing a 400 KV A oil transformer to provide reliable service.If you are interested in buying a 400 KV A oil transformer or if you want to learn more about them, developing your knowledge about oil type transformers will ultimately give you the tools necessary to understand the role oil transformers play in today’s electrical Systems.
