22kV Dry-Type Transformer for Industrial Park
Country: Vietnam
Industry: Industrial Park
Main Product: Cast Resin Dry-Type Transformer
Application: Factory / Industrial Park
Voltage: 22kV / 0.4kV
Frequency: 50Hz
Meta Description
LBAJI delivers customized 22kV cast resin dry-type transformer solutions for Vietnam industrial park indoor power distribution projects. We provide one-stop services including professional solution design, precision manufacturing, strict factory testing, export-standard packaging, on-site installation and commissioning, ensuring safe, stable, low-maintenance and energy-efficient power supply for industrial manufacturing operations.
1. Project Overview
Modern industrial parks in Vietnam have high standards for power supply safety, stability and environmental adaptability, especially for indoor electrical equipment deployed in intensive factory buildings. This Vietnam industrial park project focuses on supporting continuous and stable power consumption for precision manufacturing workshops, production equipment and public supporting electrical facilities.
Considering the indoor closed installation environment, dense equipment layout, and strict local industrial fire safety regulations, traditional oil-immersed transformers with fire hazards and high maintenance costs were completely excluded. Finally, LBAJI’s high-performance 22kV/0.4kV cast resin dry-type transformer was selected as the core power distribution equipment to build a safe, reliable and compact medium-voltage power supply system for the park.
2. Project Challenge
The industrial park’s indoor power distribution scenario put forward strict comprehensive requirements for transformer performance, installation and later operation, bringing multiple construction challenges:
Indoor Closed Installation: Limited space in the indoor power distribution room requires compact equipment structure and no oil leakage pollution risk, adapting to dense indoor layout
High Fire Safety Standard: Industrial manufacturing scenarios have high fire prevention requirements, needing flame-retardant, self-extinguishing and explosion-proof transformer performance to eliminate hidden fire dangers
Low Maintenance Operation: The industrial park covers a large area with numerous electrical equipment, requiring transformers with stable performance and minimal daily maintenance to reduce later operation costs
Ultra-Stable Power Supply: Precision manufacturing equipment is sensitive to voltage fluctuation, requiring low loss, low noise and anti-interference power output to avoid production shutdown and product loss caused by power instability
Space-Saving Layout: The power distribution room has fixed construction specifications, requiring optimized equipment structure to match compact electrical room layout and save infrastructure transformation costs
3. LBAJI Solution
Combined with Vietnam’s national power grid standards, industrial park application scenarios and client’s personalized demands, LBAJI tailored a 22kV medium-voltage cast resin dry-type transformer integrated power distribution solution, targeting all pain points of the project. Different from ordinary dry-type transformers, our customized solution adopts upgraded vacuum casting process and optimized electromagnetic structure design, perfectly adapting to long-term indoor continuous operation in high-temperature and high-humidity environments in Vietnam.
The overall solution integrates transformer main equipment, high and low voltage connecting accessories, intelligent temperature control system and safety protection devices, realizing integrated delivery and one-stop installation and commissioning, effectively shortening the project construction cycle and ensuring the matching degree of the whole power distribution system.
4. Products Supplied
To support the full operation of the industrial park power distribution system, LBAJI provided a full set of matching electrical equipment and accessories:

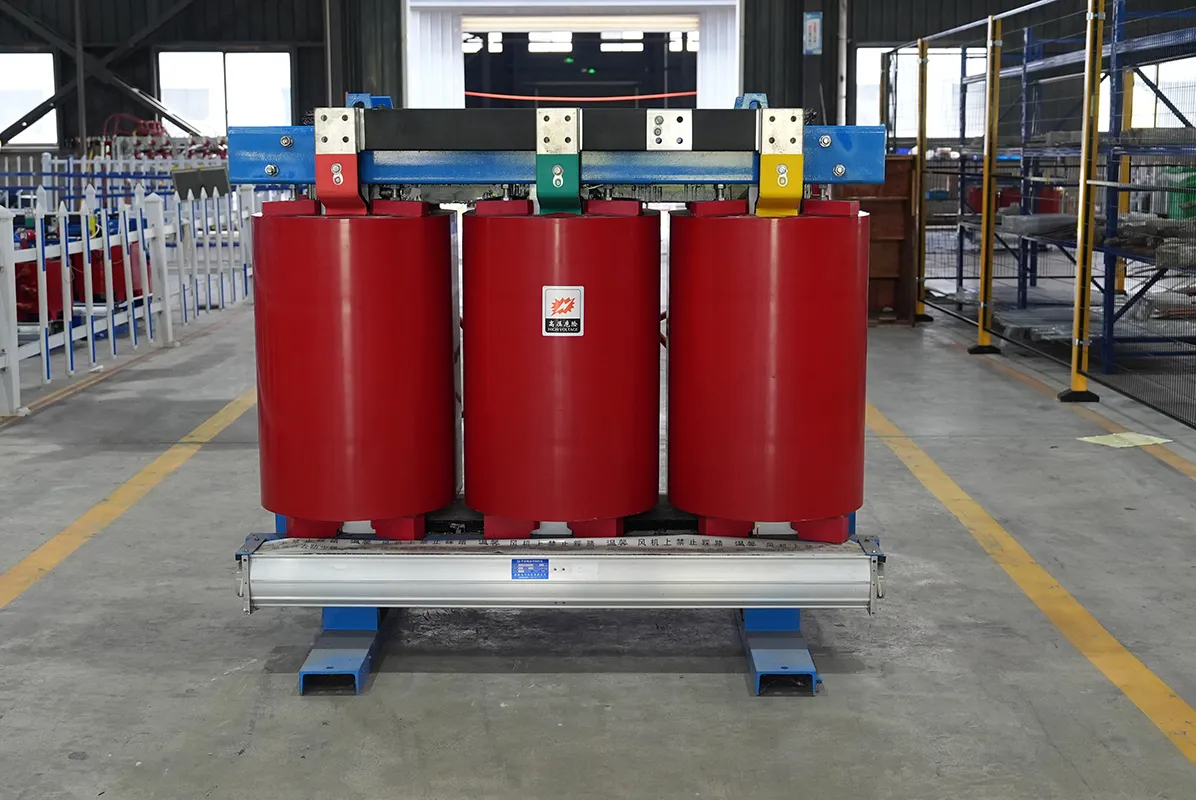

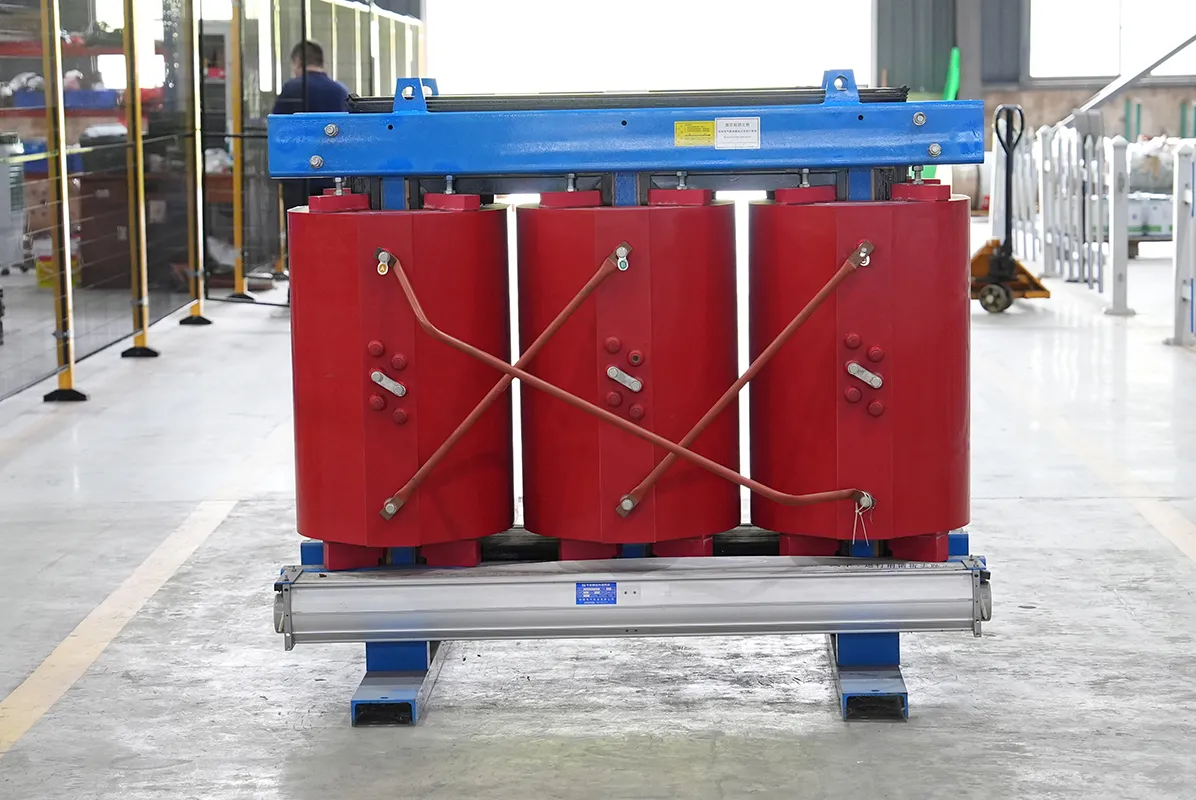

–22kV/0.4kV Cast Resin Dry-Type Transformer (1000–2500kVA optional)
–Medium Voltage (MV) professional connection equipment and wiring accessories
–Low Voltage (LV) standard connection interface and busbar accessories
–Intelligent digital temperature controller (real-time temperature monitoring and over-temperature protection)
–Automatic cooling fans (intelligent start-stop according to operating temperature)
–Complete safety protection accessories (shockproof, dustproof, insulation protection components)
5. Technical Specifications
- Primary Voltage: 22kV
- Secondary Voltage: 400V
- Frequency: 50Hz
- Capacity: 1000–2500kVA
- Insulation: Cast Resin
- Installation: Indoor
| Technical Item | Parameter |
| Primary Voltage | 22kV |
| Secondary Voltage | 0.4kV |
| Rated Frequency | 50Hz (comply with Vietnam grid standard) |
| Optional Capacity | 1000kVA / 1250kVA / 1600kVA / 2000kVA / 2500kVA |
| Insulation Grade | F-Class high temperature resistance |
| Insulation Material | High-purity cast resin (flame-retardant, self-extinguishing, moisture-proof) |
| Installation Type | Indoor fixed installation |
| Operation Feature | Oil-free, low loss, low noise, anti-humidity, anti-corrosion |
6. Manufacturing
All transformers are manufactured in strict accordance with international IEC standards and Vietnam industrial electrical specifications, with every process implementing full-process quality inspection to ensure product stability and durability:

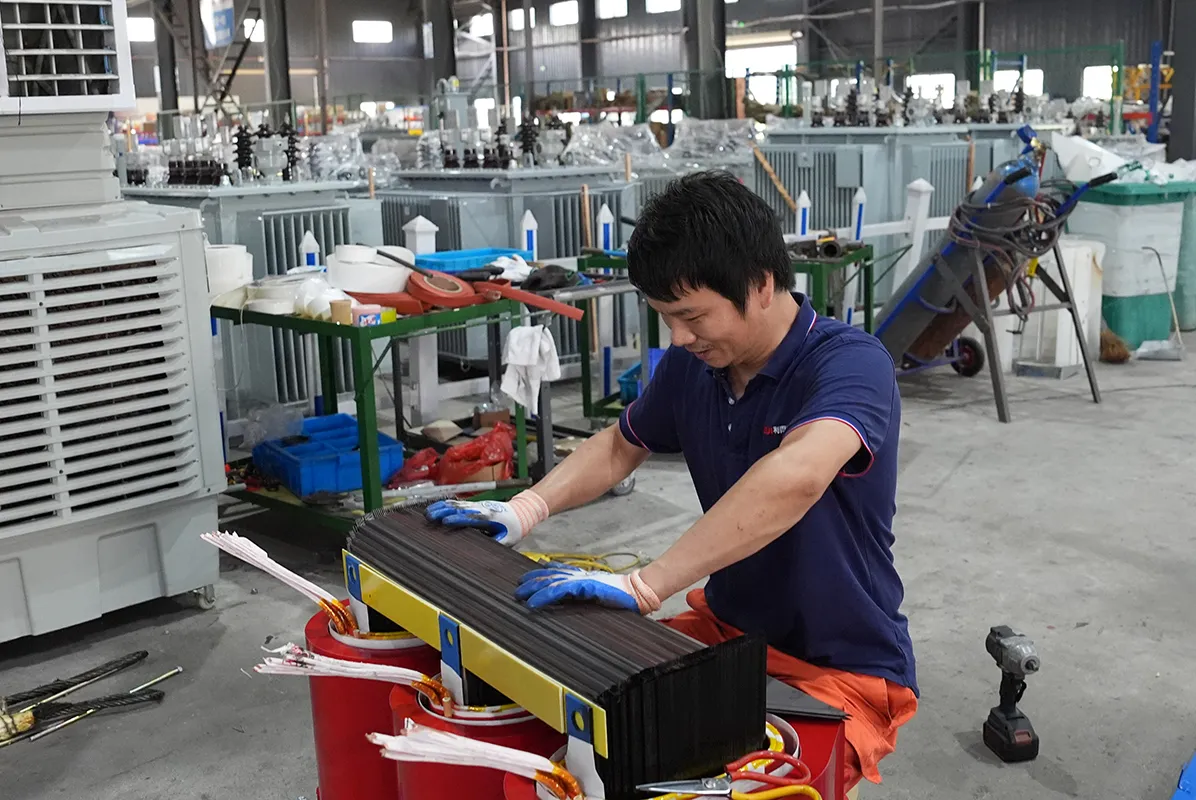

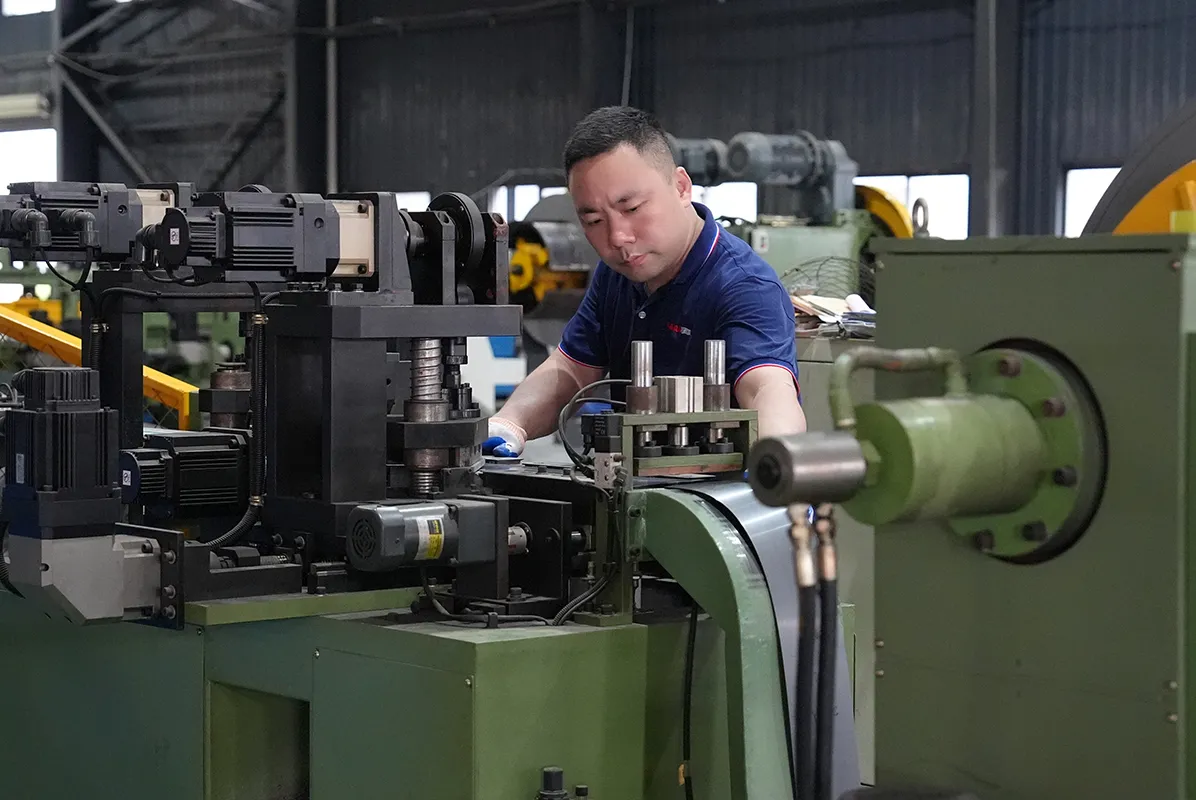

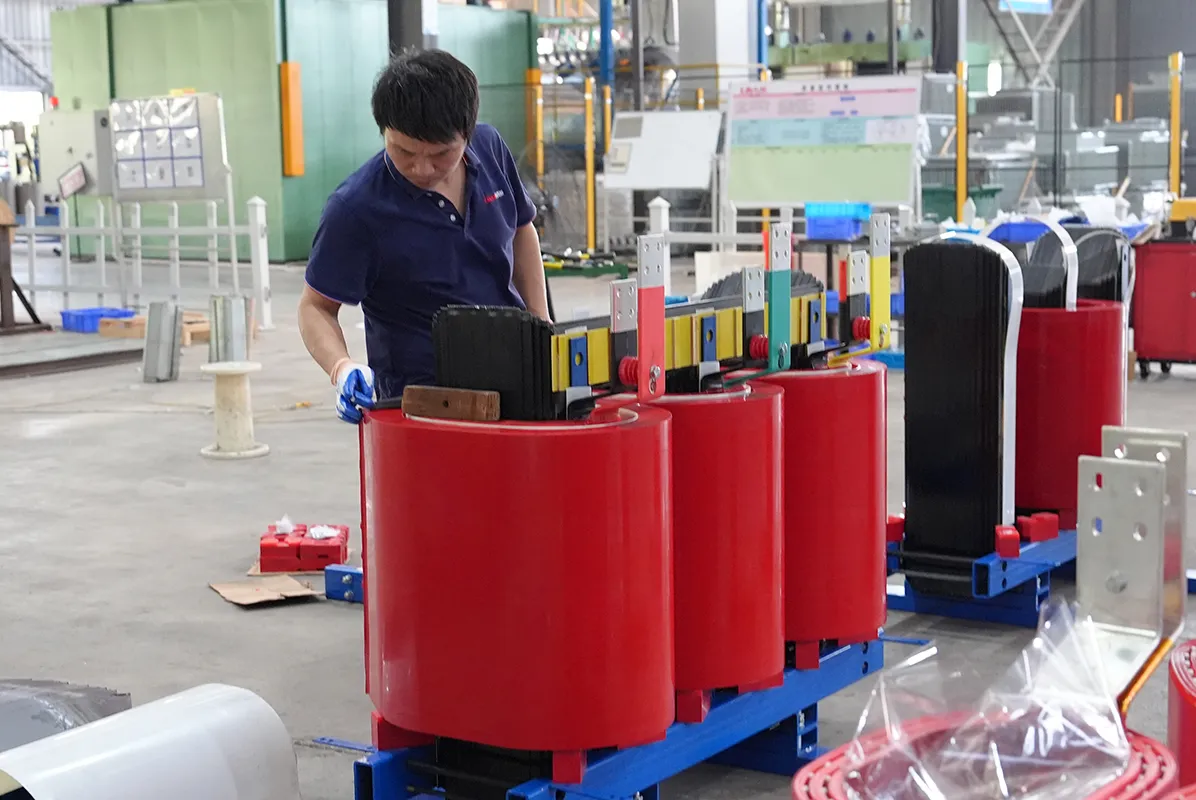

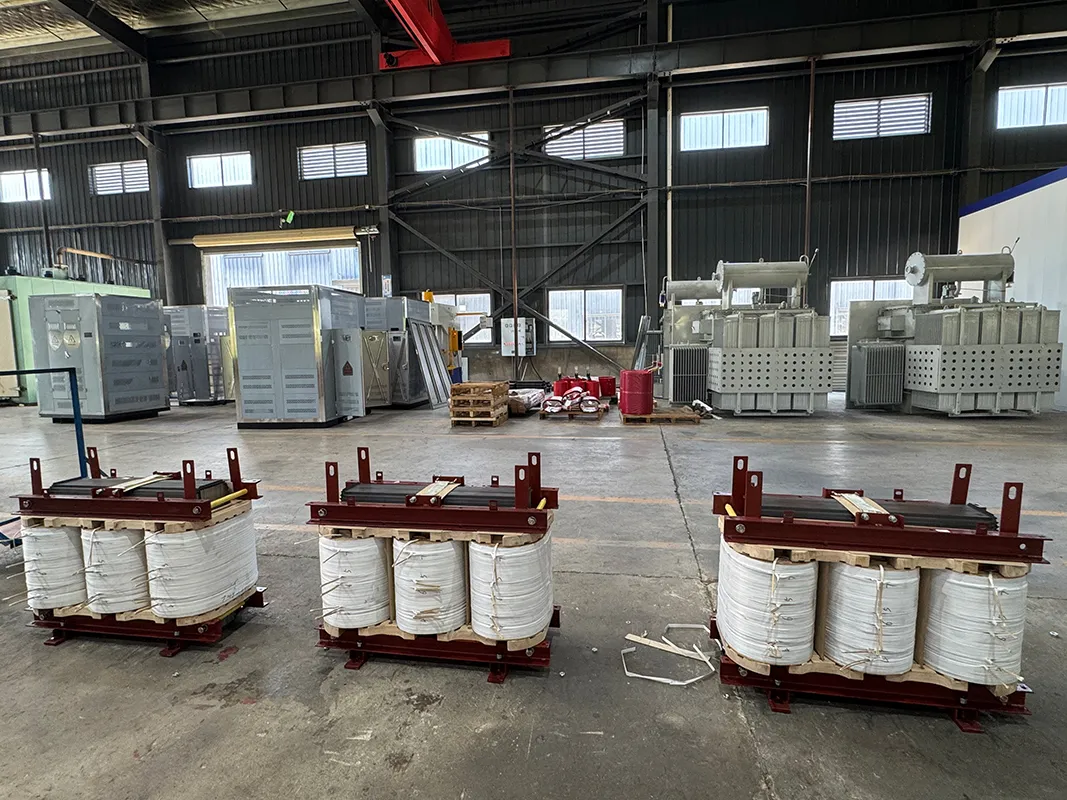

Core Cutting → Precision Core Stacking → High-Precision Coil Winding → Full Vacuum Resin Casting → Constant Temperature Curing Treatment → Precision Assembly → Multi-Round Factory Testing (voltage resistance test, partial discharge test, temperature rise test, load operation test)
All finished products pass 100% full performance tests before delivery, eliminating defective products and ensuring long-term stable operation in harsh indoor industrial environments.
7. Packing & Shipment

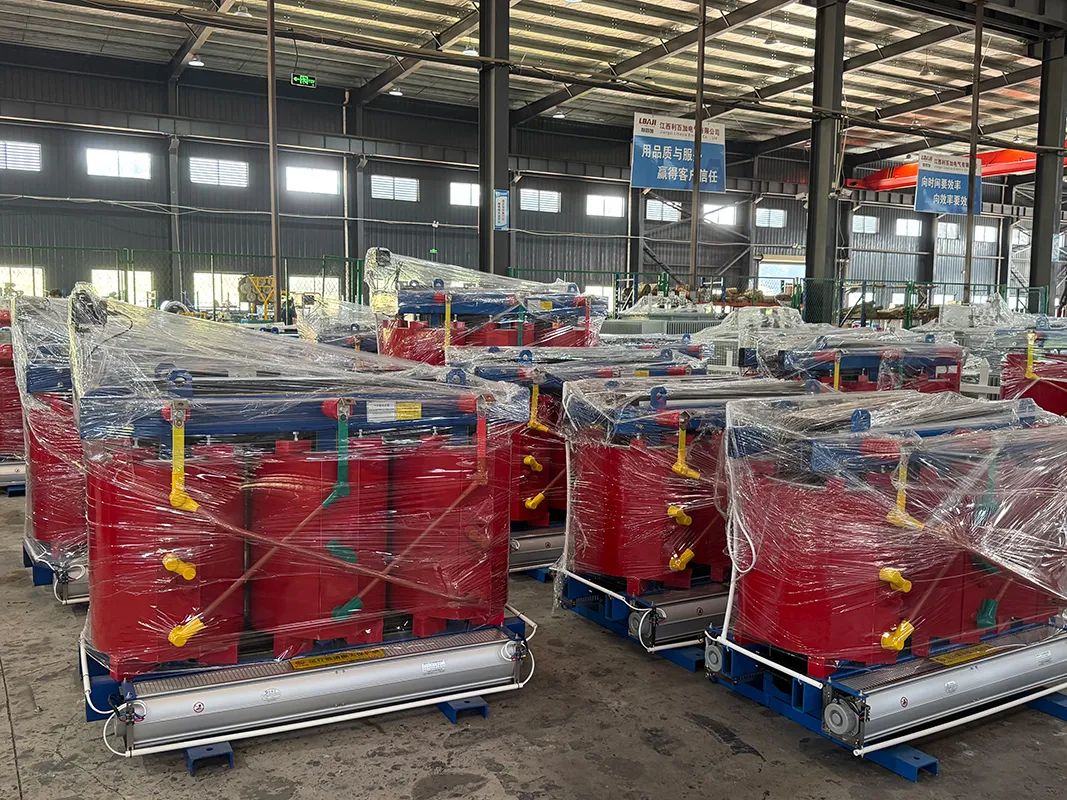

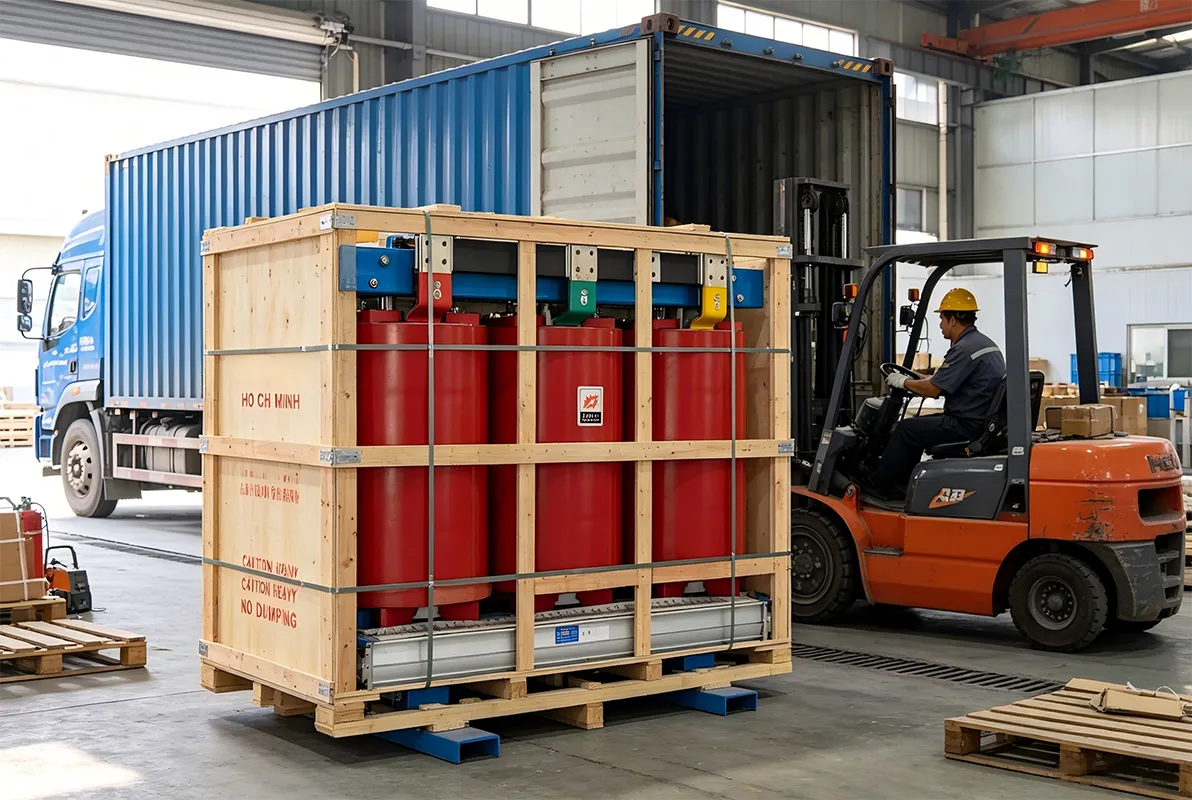

The transformers were protected using export-grade packaging suitable for international container transportation.
8. Installation
The installation process includes:
- Indoor positioning
- MV cable connection
- LV busbar connection
- Grounding
- Temperature controller connection
- Electrical testing
- Energization
9. Core Customer Benefits & Project Value
After the project is put into operation, the transformer system runs stably, fully meeting the long-term power demand of the Vietnam industrial park, bringing multiple core economic and safety benefits to customers:
100% Oil-Free Safe Operation: Completely avoid oil leakage, fire and explosion risks, meet industrial high fire safety standards, and greatly reduce indoor electrical hidden dangers
Excellent Indoor Environmental Adaptability: Moisture-proof, dust-proof and anti-corrosion performance, suitable for Vietnam’s high-temperature and high-humidity climate and closed indoor environment
Ultra-Low Maintenance Cost: Stable structure, no consumable replacement required, minimal daily maintenance, saving a lot of later operation and labor costs
Space-Saving Compact Design: Optimized structural layout, small floor space, perfectly matching the compact power distribution room design of the industrial park
High-Reliability Power Supply: Low voltage fluctuation, low loss and stable operation, effectively guaranteeing continuous production of factory equipment and improving overall operational efficiency of the industrial park
Green & Environmentally Friendly: Low noise and no pollution during operation, meeting modern industrial park green environmental protection construction standards
10. After-Sales Service Guarantee
LBAJI provides long-term after-sales support for all Vietnam projects, including remote technical guidance, regular operation follow-up, spare parts supply and localized after-sales service, ensuring the long-term safe and stable operation of the transformer equipment and solving customers’ operation worries.
