Oil-Immersed Transformer For Regional Power Distribution

Kazakhstan

Oil-Immersed Transformer for Regional Power Distribution

Country: Kazakhstan

Industry: Power Distribution
Main Product: Oil-Immersed Transformer
Application: Regional Distribution Network
Voltage: 10kV / 0.4kV
Frequency: 50Hz

1.Project Overview

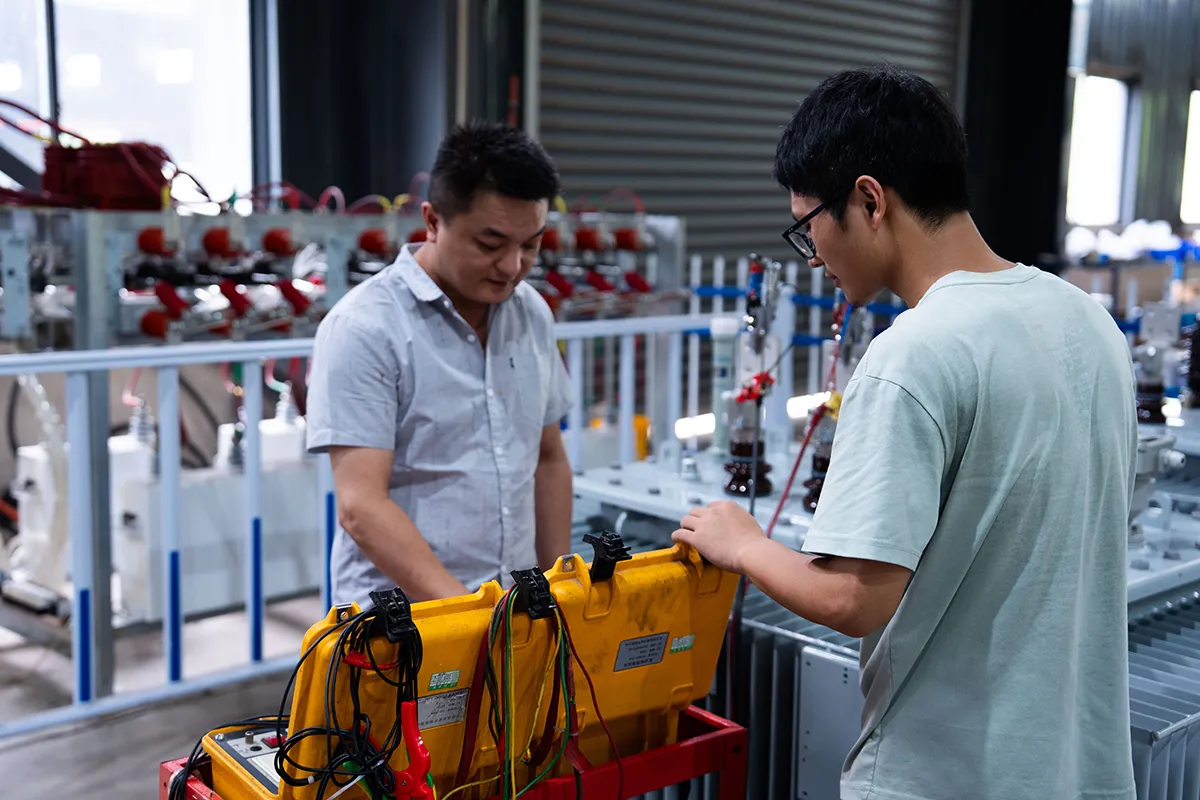

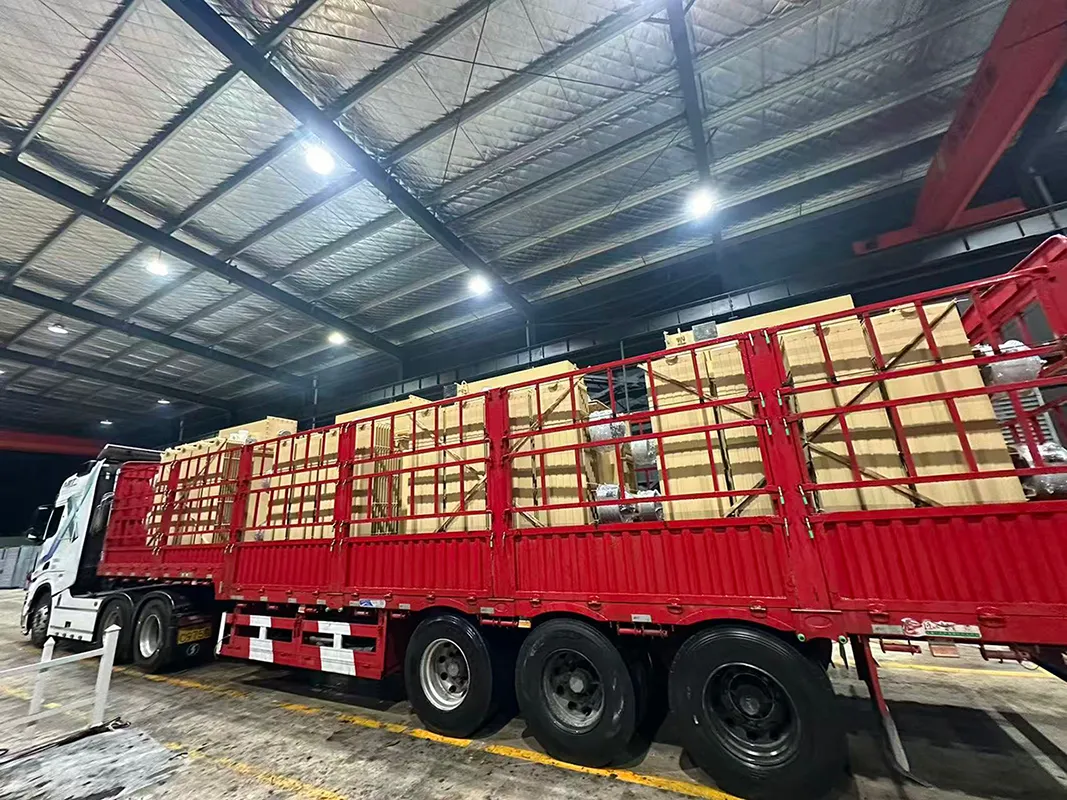

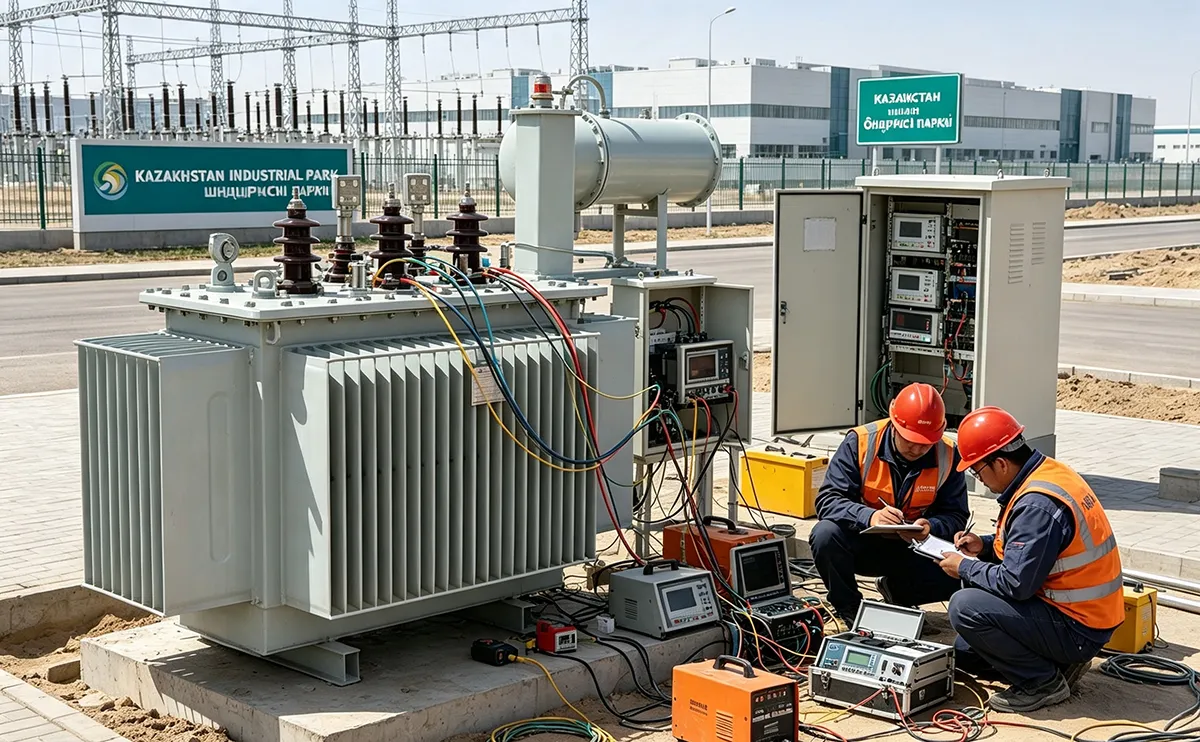

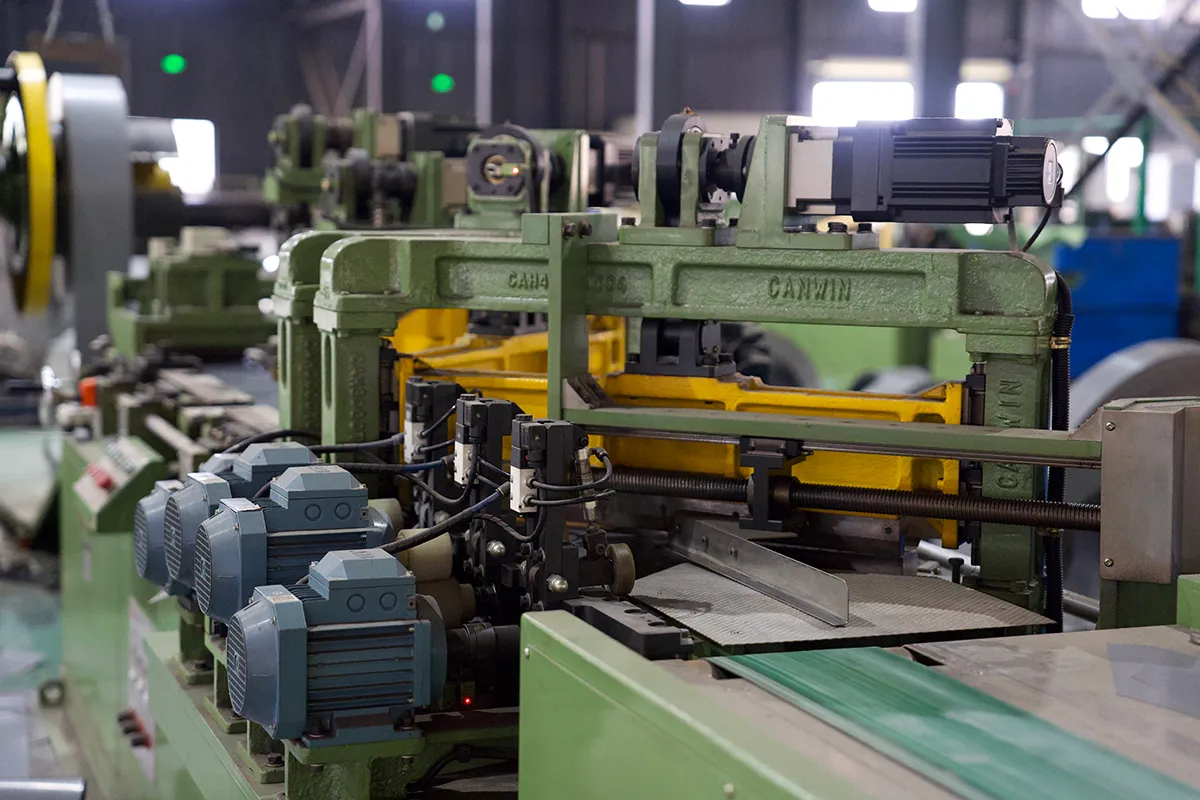

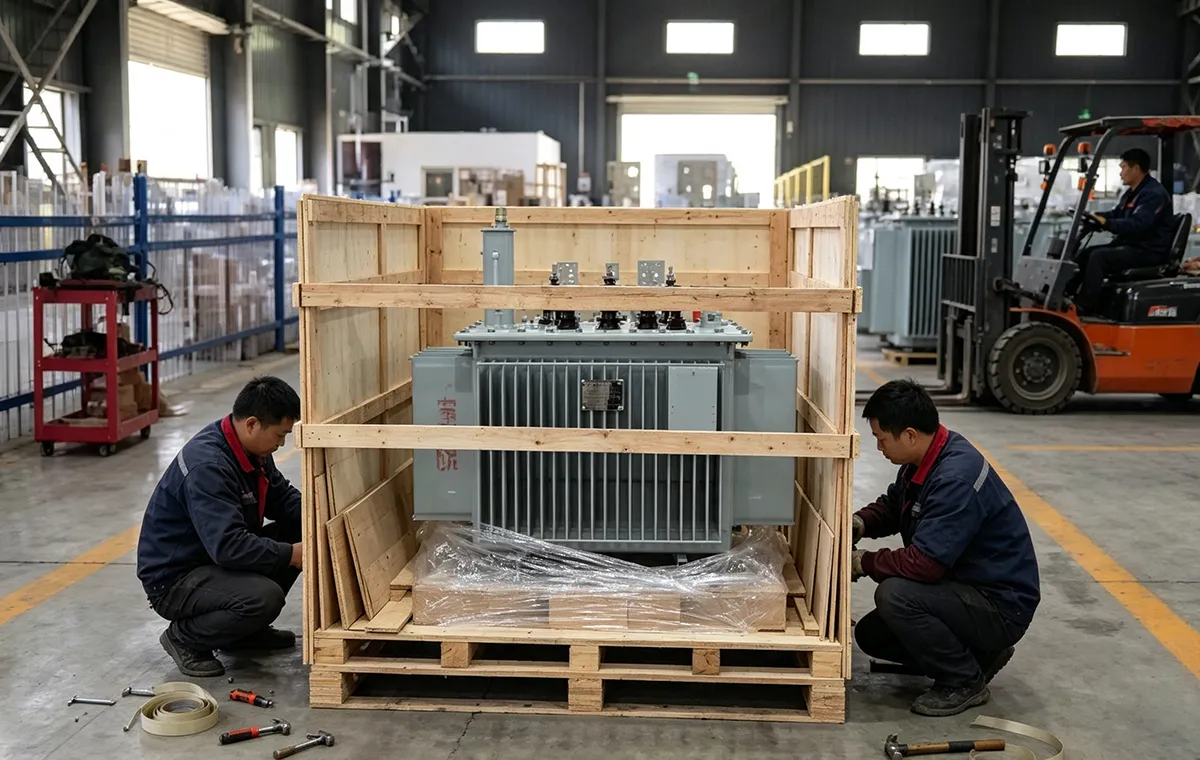

Explore LBAJI’s oil-immersed transformer solution for regional power distribution in Kazakhstan, including manufacturing, testing, export shipment and site commissioning.

The project was designed for a regional power distribution application in Kazakhstan, where reliable medium-voltage transformation was required for industrial and commercial loads.

The transformer solution was designed for a 10kV/0.4kV distribution environment and outdoor installation.

2. Project Challenge

The application required equipment capable of handling:

Seasonal temperature variations
Outdoor installation
Continuous electrical loads
Long-distance transportation
Reliable operation with limited maintenance

3. LBAJI Solution

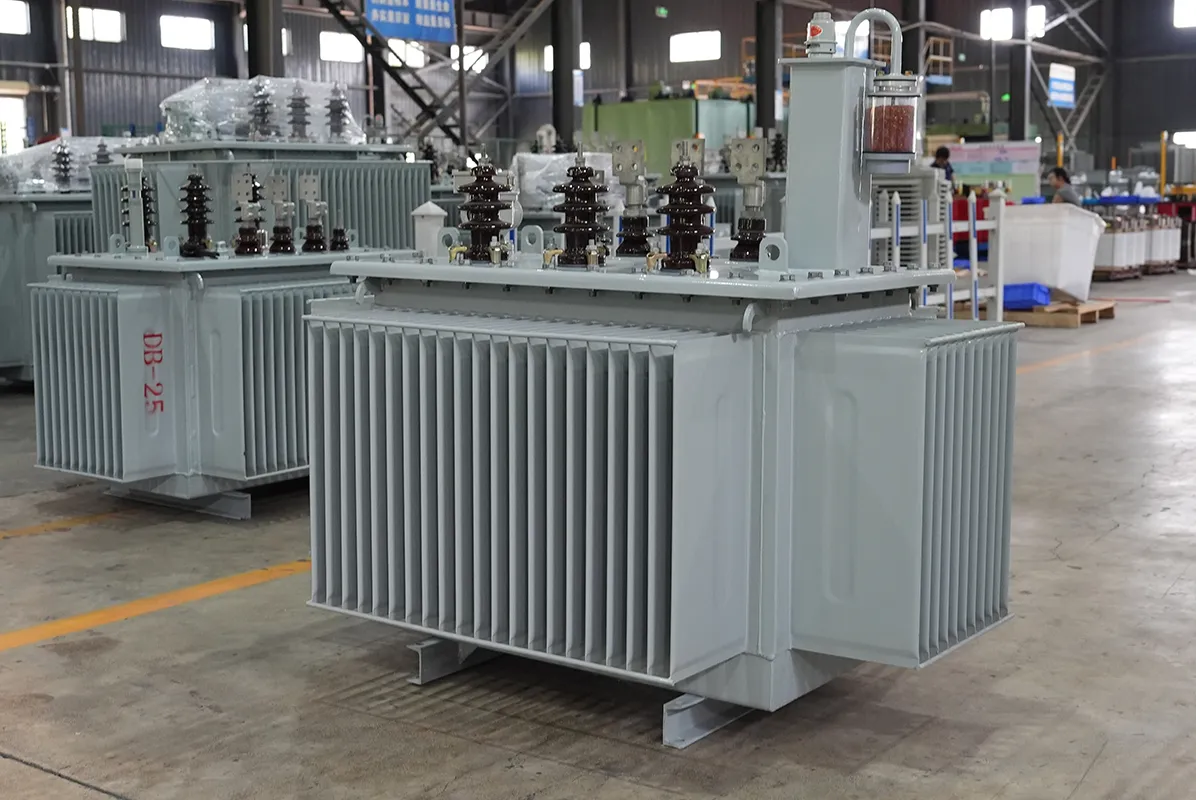

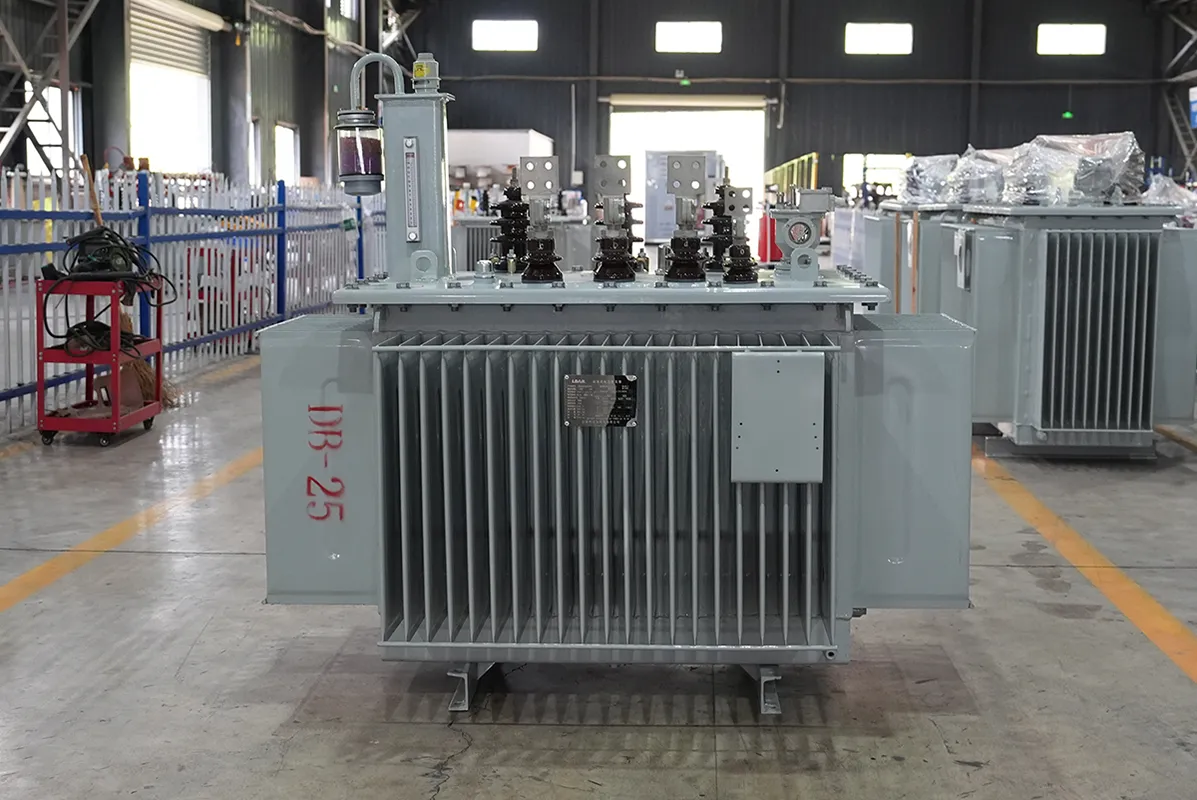

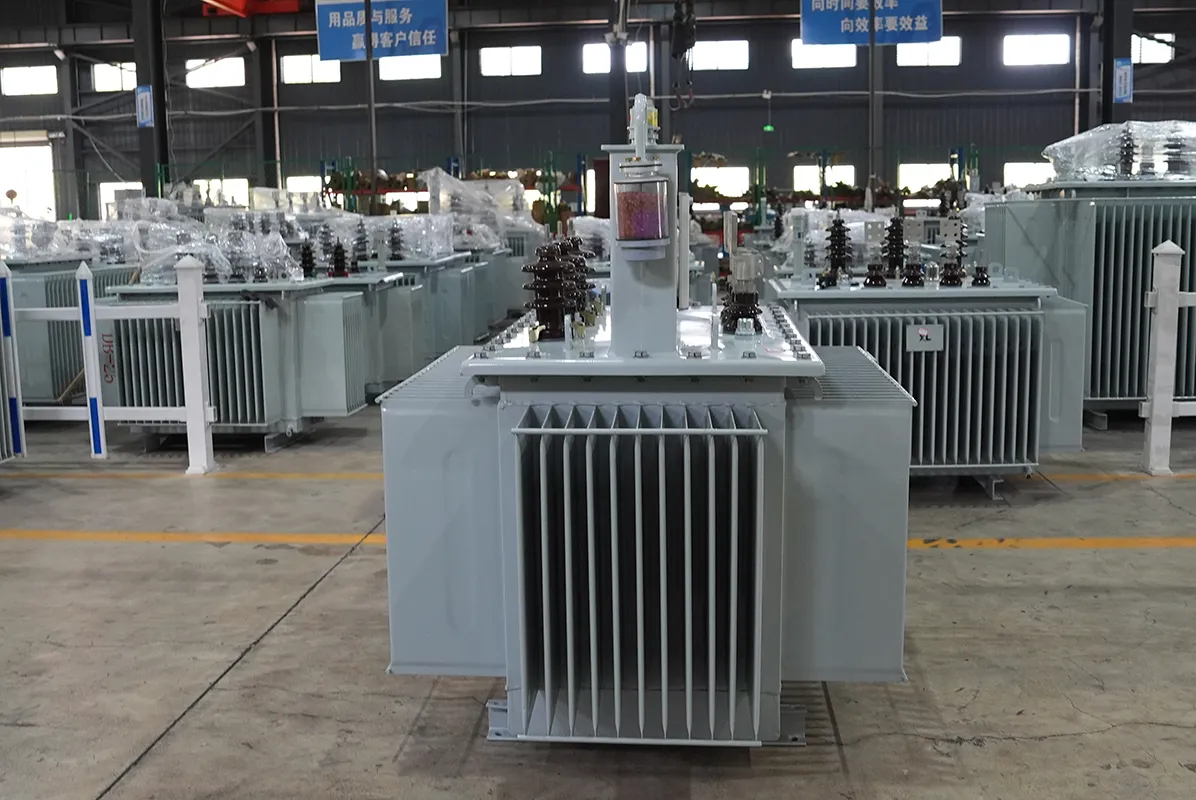

LBAJI proposed an oil-immersed transformer featuring:

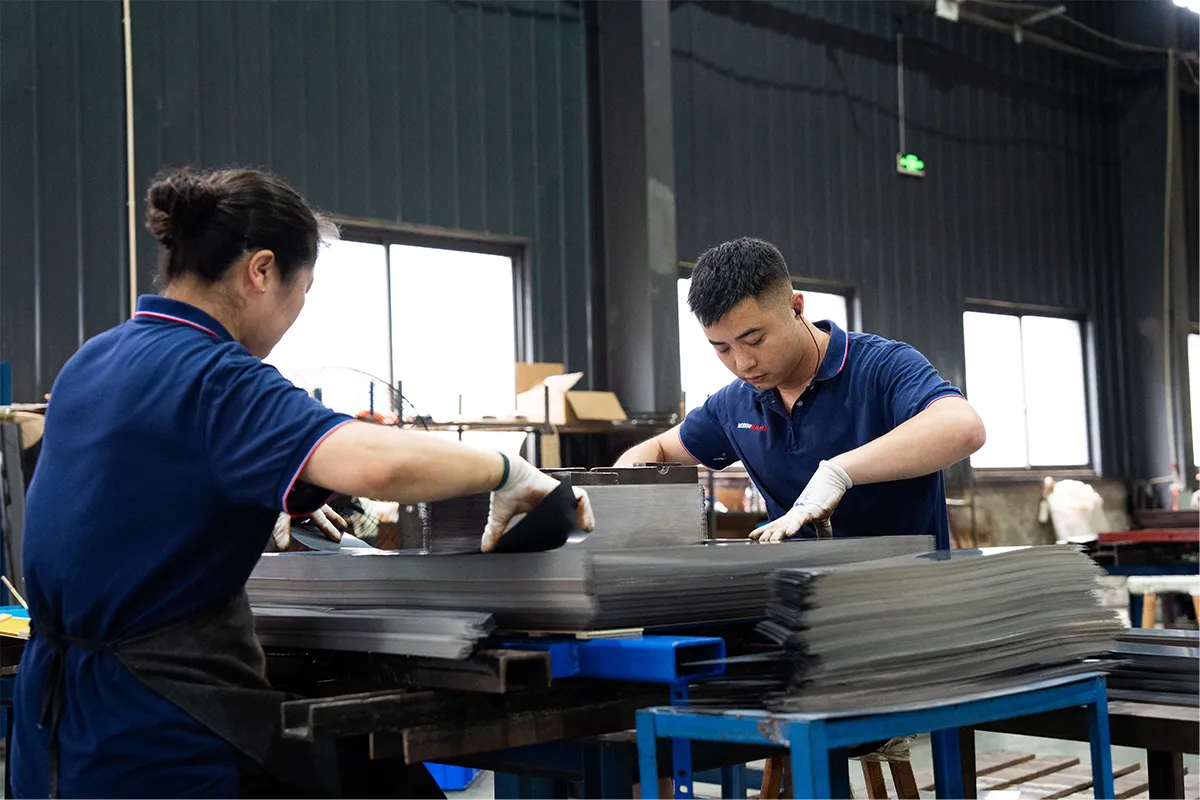

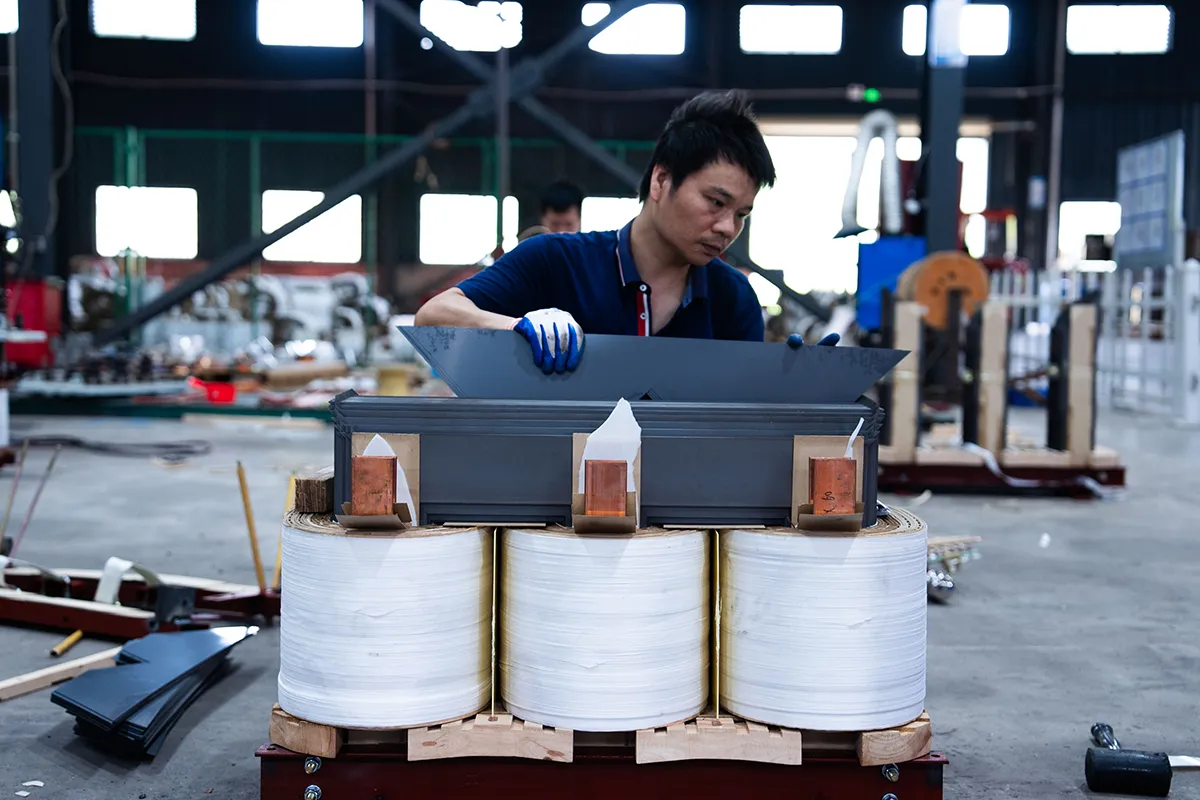

High-quality silicon steel core
Optimized winding structure
Robust transformer tank
Efficient oil cooling
Temperature monitoring
Pressure relief protection

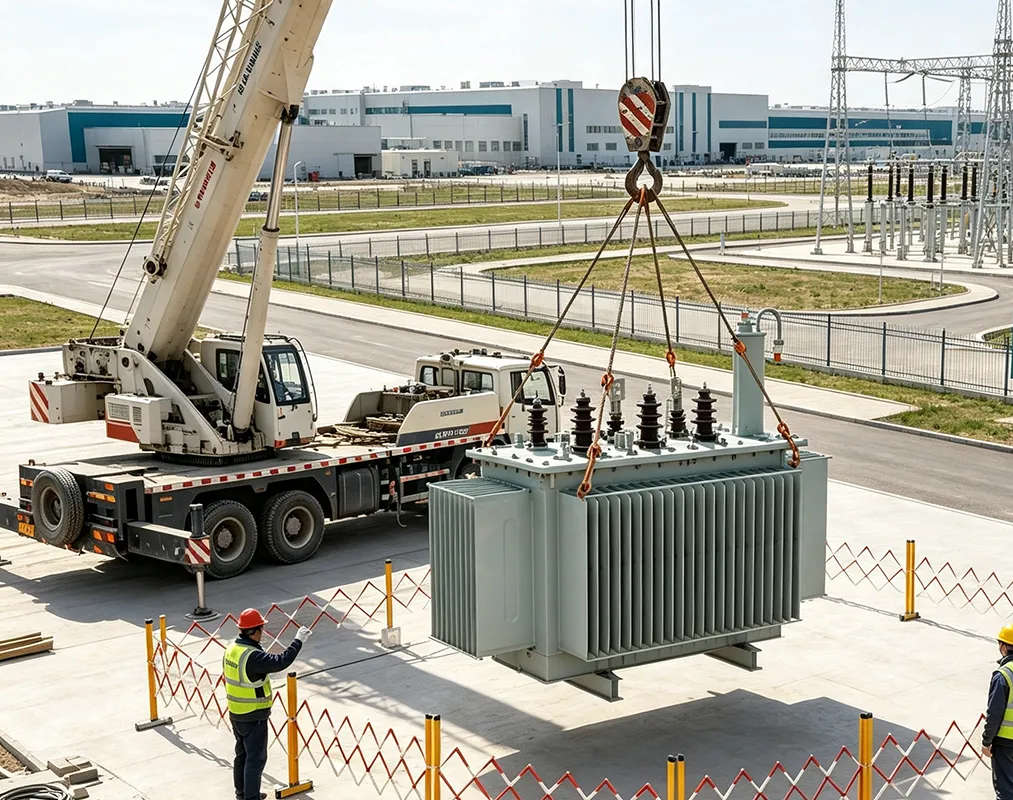

Outdoor installation design

4. Technical Specifications

Parameter	Specification
Country	Kazakhstan
Project Type	Regional Power Distribution

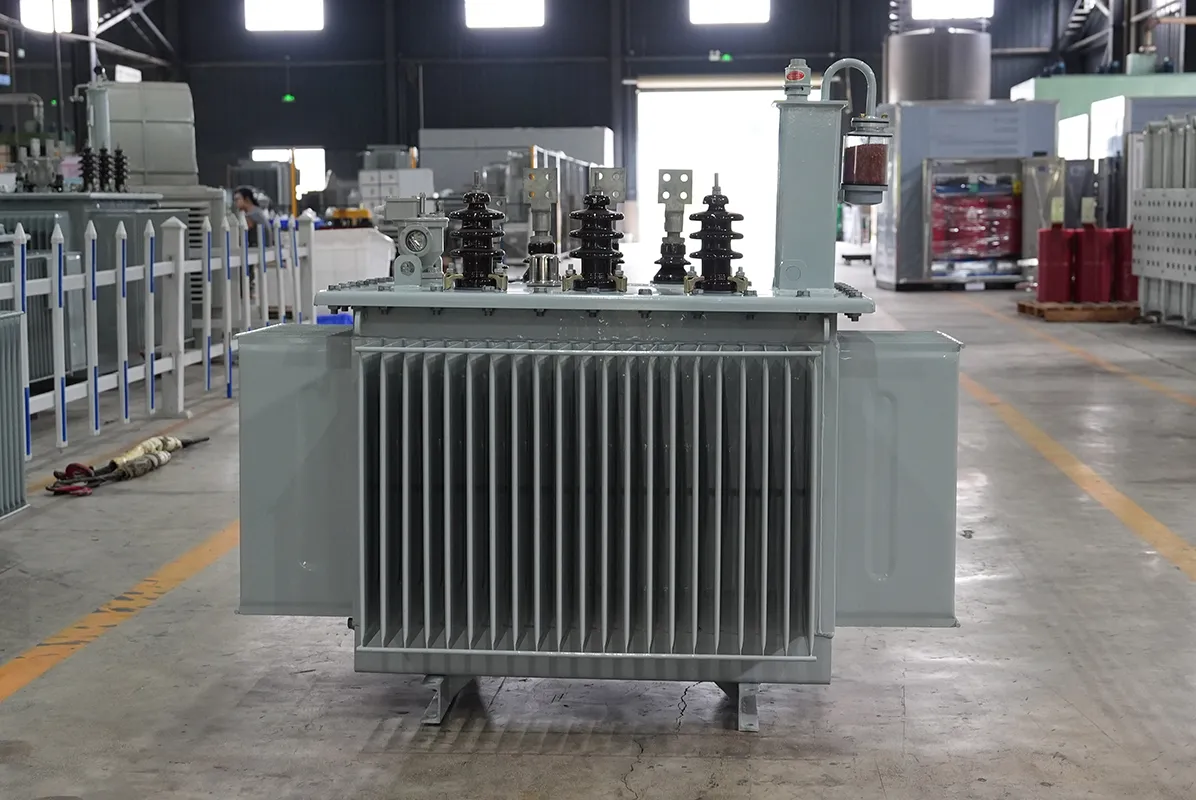

Product	Oil-Immersed Transformer
Model	S11 / S13 Series*
Rated Capacity	630–1600 kVA*
Rated Primary Voltage	10 kV
Rated Secondary Voltage	0.4 kV
Frequency	50 Hz
Phase	Three Phase
Cooling Method	ONAN
Insulation Medium	Mineral Insulating Oil
Tap Range	±2×2.5% / ±5%*
Vector Group	Dyn11*
Installation	Outdoor
Ambient Condition	Outdoor / Continental Climate
Standards	IEC 60076
Application	Regional Power Distribution

Primary Voltage: 10kV
Secondary Voltage: 0.4kV
Frequency: 50Hz
Capacity: 630–1600kVA
Cooling: ONAN
Installation: Outdoor
