Selecting a transformer (specifically, a 63KVA oil transformer) is a decision that may significantly impact how well your electrical system performs now, how efficiently it operates, and how much it costs to maintain over the long run. By being aware of the factors that influence transformer selection, you can manage energy use and improve the reliability of your applications. This guide will provide comprehensive information about 63KVA oil-filled transformers including their capacity, installation types and common errors to avoid when selecting them.
Understanding Voltage Ratings: 11kV/433V, 33kV/433V, and More
When selecting a 63KVA oil transformer, one of the most important factors to consider is its voltage rating. The two types of voltage ratings that are commonly found in a 63KVA oil transformer are 11kV/433V and 33kV/433V. By having an understanding of these ratings, you will be able to determine whether the transformer will provide maximum efficiency? For example, when you have a much greater amount of electricity being generated and transported at higher voltage levels, you also have the ability to transfer more electricity over longer distances with fewer losses. Therefore, if your business requires the use of a high-voltage transformer, you need to ensure that the transformer you select is capable of providing the required amount of power without sacrificing either reliability or safety.
Pole Mounted vs. Pad Mounted 63KVA Oil Transformer

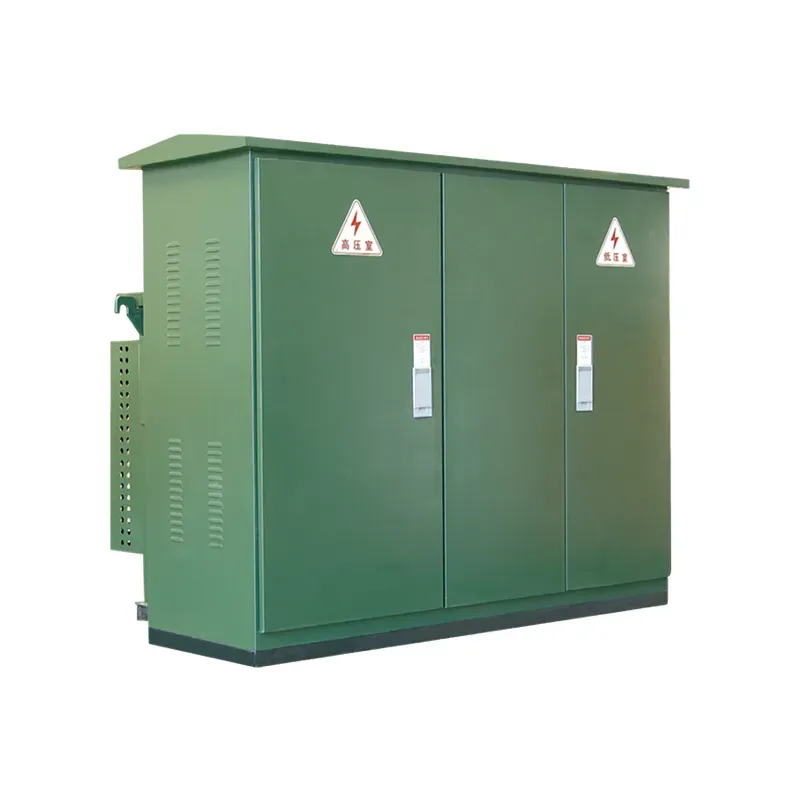

Another important aspect to consider during your selection process is how your transformer will be installed. The two most common installation methods for 63-KVA oil-filled transformers include pole-mounted and pad-mounted transformers. Pole-mounted transformers are usually installed on standard overhead power poles and can be accessed for easy inspection and maintenance. In contrast, pad-mounted transformers are installed on concrete pads located at ground level and are more space-efficient than pole-mounted units, making them a good option in urban areas and/or areas where aesthetics are critical. When making a selection, think about the amount of physical space you have available, as well as the impact of the transformer on the surrounding area visually.
5 Mistakes to Avoid When Selecting a 63KVA Oil Transformer
To successfully buy an oil-filled Transformer rated at 63 KVA it is important to be aware of common mistakes; avoiding these mistakes will help you save both time and money while also reducing your frustration. Below are 5 common mistakes to avoid.
1. Failing to assess load demands: Make sure that your transformer is able to handle all load demands without exceeding its capacity and to produce a lot of heat and work efficiently.
2. Do not overlook compatibility of transformer voltage: Ensure transformer’s output voltage is compatible with your input voltage.
3. Do not ignore environmental factors: Look at the local climate and construction regulations for the area to see how they will impact the operation and lifecycle of the transformer.
4. Selecting a transformer that meets operational capabilities for maintenance and monitoring: Underestimating maintenance needs
5. If you have a need for consulting services, do not make the mistake of failing to reach out to an expert who can help you meet those needs.
Frequently Asked Questions (FAQs) About 63KVA Oil Transformers
1. What is the oil capacity of a 63KVA transformer?
Depending on the manufacturer developed the transformer, a fifty-three kilowatt (kva) oil-filled transformer can hold varying amounts of oil. However, most typically, they have an operating oil capacity between 120 liters and 150 liters of transformer oil. Transformer oil provides insulation around electrical components and dissipates heat created through normal operation.
2. How do I determine whether I need an 11kV/433V or 33kV/433V transformer?
The decision to use either 11 kV / 433 V or 33 kV / 433 V will depend on the voltage requirements of your system. The 33 kV / 433 V transformer is typically ideally suited for higher voltage applications that require longer-distance power transmission, while the 11 kV / 433 V transformer typically has much lower voltage requirements than the 33 kV / 433 V transformer and is usually applied to small to medium-size commercial or industrial applications.
3. What is the expected lifespan of a 63KVA oil transformer?
The lifespan of an oil-type 63KVA transformer greatly depends upon numerous factors, including the conditions in which the transformer has been maintained, its operating conditions, and the materials used in the construction of the transformer. However, it is estimated that a properly maintained transformer can last from 20-30 years or more depending on the degree to which the transformer is regularly inspected and maintained.
4. Which is better: oil-filled transformers or dry-type transformers?
The type of transformer you require (oil-filled vs. dry-type) will depend on the specific application you wish to use it in, as well as the overall environment. Oil-filled transformers are generally considered more efficient than dry types and therefore are better suited for outdoor applications and larger capacity (i.e.63KVA) systems; however, due to their relatively lower risk of catching fire and requiring little to no maintenance, dry transformers have become popular choices for use in enclosed spaces or areas where there may be a greater risk of fire.
5. How can I maintain my 63KVA oil-filled transformer for optimal performance?
To ensure the longevity and efficient operation of your transformers, routine maintenance is vital. Regularly monitoring the oil level and quality, performing insulation resistance tests, examining the bushings and seals for leaks, and removing dirt or debris from the exterior of the transformer are some of the basic tasks to complete. You should also hire a qualified technician to perform periodic testing and servicing to identify potential problems before they become serious.
6. Can I install a 63KVA oil transformer in a residential setting?
Yes, however it is contingent on the local codes of building and safety. 63 KVA oil filled transformers are generally used in commercial, industrial and utility situations because they require adequate ventilation and the proper safety standards when built due to the fact that they cool with oil.
Conclusion
Getting the right 63KVA oil transformer is critical for proper operation of your electrical system. To ensure efficiency and reliability, consider voltage ratings, installation type, and mistakes commonly made during installation or maintenance. When in doubt, conduct extensive research and consult with an expert to make the best decision regarding your transformer needs.
