A medium voltage switchgear cable termination interface must match the cable system, termination accessory and switchgear connection arrangement as a complete assembly. Voltage class and conductor size are only the starting points. Insulation dimensions, connection geometry, stress-control requirements, clearances, mechanical support and verification evidence must also agree. For a buyer, the most effective approach is an interface schedule reviewed by the cable, accessory and switchgear parties before manufacture or site installation. A cable that physically enters the cabinet is not automatically compatible with its electrical termination arrangement.
Separate cable entry from electrical termination
Cable entry describes how a cable passes into an enclosure and how that opening is sealed and supported. A termination manages the cable end’s electrical and mechanical connection to equipment, including the relevant insulation and stress-control functions. The two interfaces interact, but a correctly sized entry plate does not prove that the termination will fit or perform correctly.
Keep separate drawing references for the entry arrangement and the termination connection. Identify responsibility for glands, supports, connection hardware and accessories. This article concentrates on the electrical termination interface; routing, enclosure penetrations and environmental sealing require their own coordinated review. Clear boundaries prevent gaps between suppliers and avoid duplicating a general cable-entry checklist.
Establish the cable and system data
Provide the actual cable designation and the relevant manufacturer’s dimensional information. Record conductor material and size, insulation system, number of cores and the dimensions needed by the selected accessory. A nominal conductor cross-section does not uniquely determine the insulation diameter or the construction of the cable end.
The project engineer must also establish the system conditions relevant to accessory selection, including the applicable voltage designations and operating arrangement. Do not select a termination from an abbreviated voltage label without reviewing its intended cable range and service conditions. Where the project uses several cable types, maintain a separate verified interface record for each applicable combination.
Identify the switchgear connection arrangement
Obtain the approved cable compartment and connection drawings for the supplied switchgear. Confirm the connection type, geometry, orientation and available installation envelope. The number and position of cable connections, phase arrangement and required access can affect whether the selected termination is practical within the compartment.

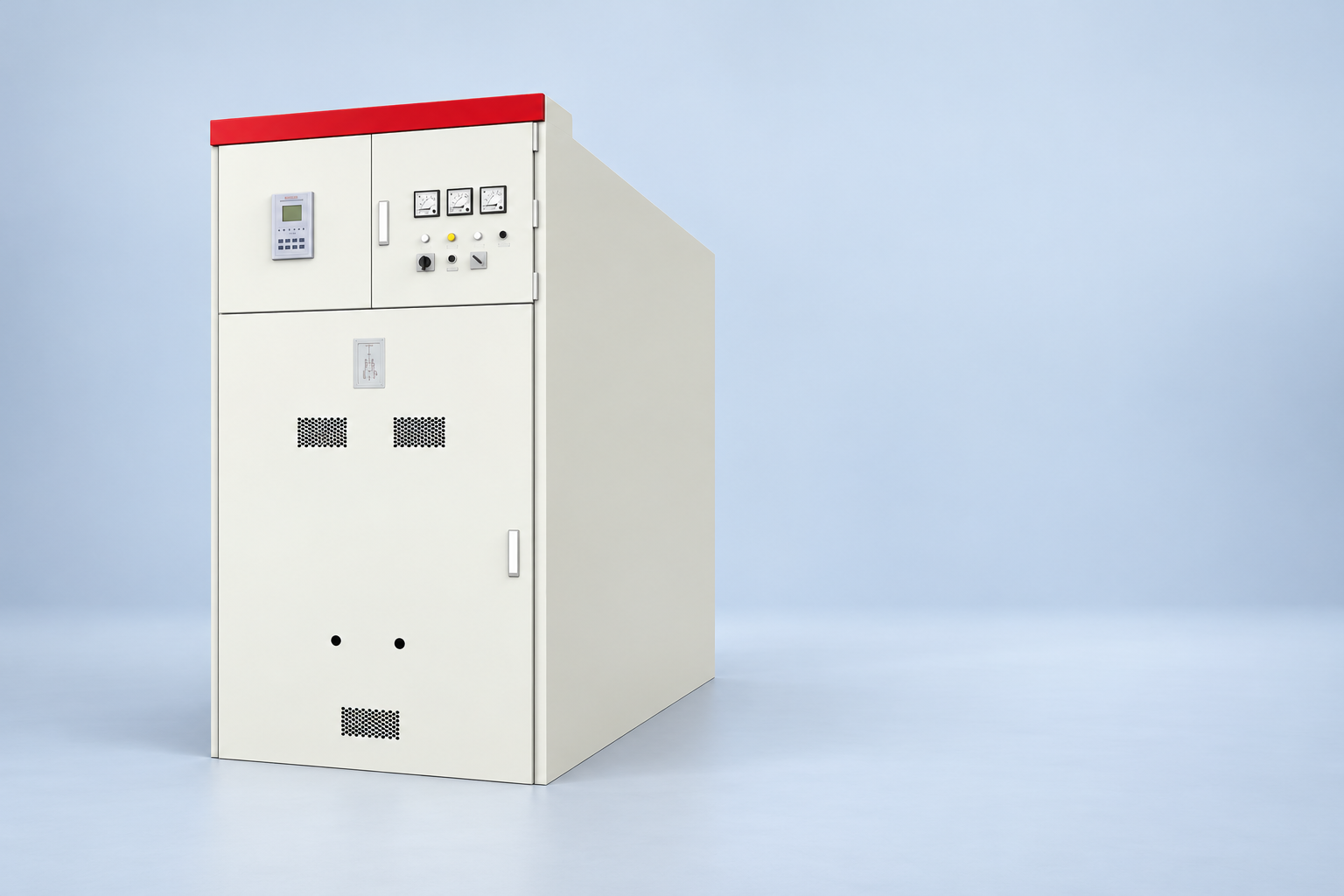

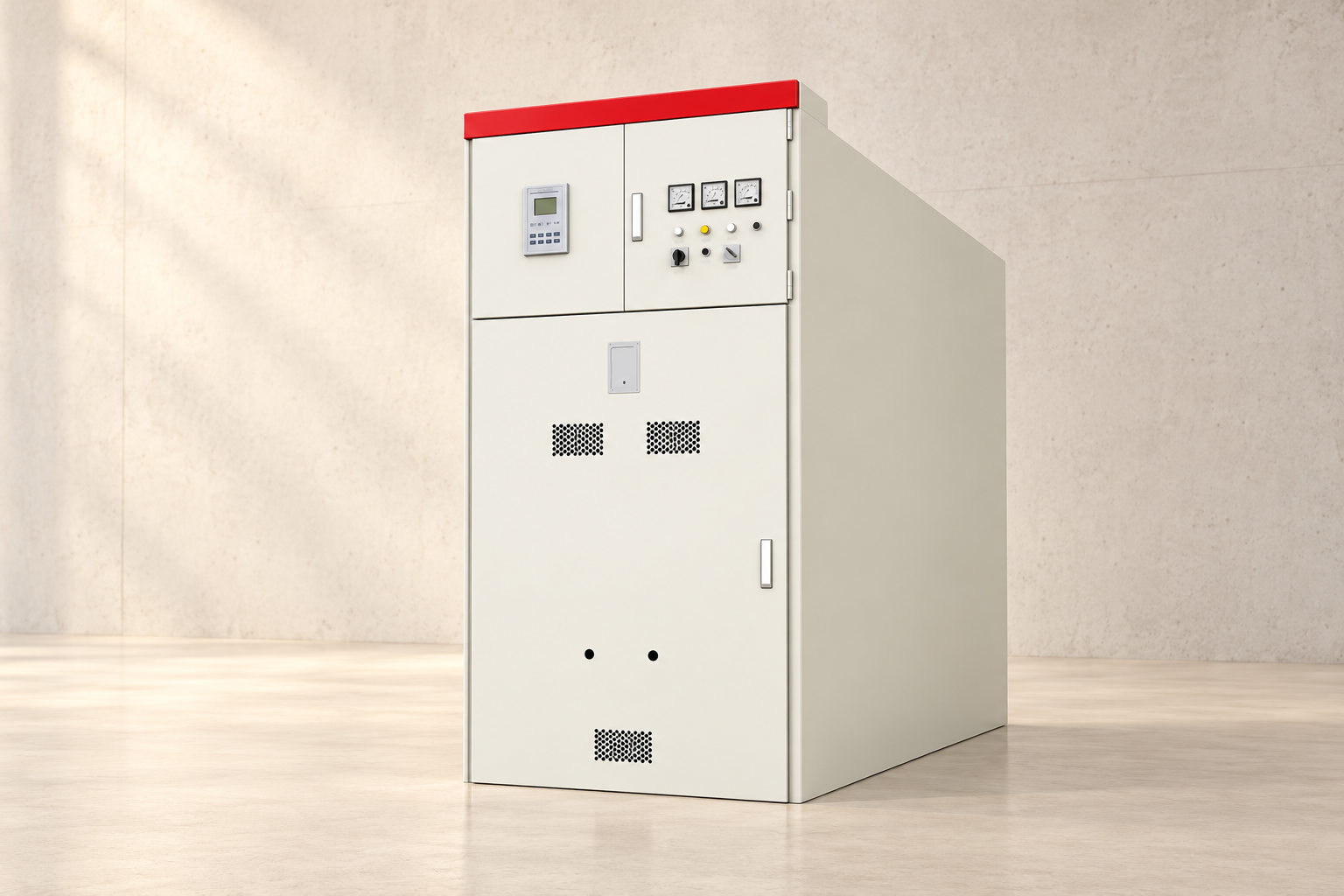

For an LBAJI KYN61 assembly, the product page identifies the relevant equipment family, while the actual cable connection details must come from the project documents. Do not infer terminal dimensions or accessory compatibility from the cabinet exterior. Ask the supplier to identify any options or limits affecting the offered arrangement before approving the cable and accessory package.
Understand why stress control matters
A shielded power cable contains a controlled insulation structure along its length. At a termination, the change in that structure requires an engineered accessory arrangement to manage electric stress and the transition to the connection. This is why a medium-voltage termination is more than an exposed conductor and a lug.
Use the accessory manufacturer’s instructions for the actual cable construction and equipment interface. Preparation dimensions, component placement and materials belong to the approved installation method. This guide does not provide cutback lengths or a field installation recipe. Those details must be taken from the correct accessory instructions and implemented by qualified personnel under the project’s work controls.
Verify the complete dimensional envelope
Review the installed termination dimensions rather than only the packaged accessory size. The connection assembly may need space for the termination body, cable bend, support, connection hardware and the required insulation arrangement. An envelope drawing should show the actual orientation inside the switchgear compartment and the relationship to adjacent phases and earthed parts.
Avoid solving a dimensional conflict by bending, trimming or repositioning accessory components outside their instructions. If the proposed combination does not fit, obtain an engineered alternative and revise the interface record. A successful physical trial is useful evidence, but it does not replace the required electrical and accessory compatibility review.
Reference context: EPRI research: medium-voltage cable accessories and termination stress control. This original qualitative checklist organizes project decisions; it is not a reproduced standard or a substitute for approved criteria.
| Interface item | Information needed | Responsible coordination |
|---|---|---|
| Cable construction | Material, insulation system and accessory selection dimensions | Cable supplier and accessory supplier |
| Equipment connection | Connection geometry and approved hardware | Switchgear supplier |
| Accessory applicability | Exact product designation and supported cable range | Accessory supplier |
| Installed envelope | Body dimensions, orientation and access space | Switchgear and accessory parties |
| Mechanical support | Cable loads and approved restraint arrangement | Project engineer and installation contractor |
| Verification | Applicable reports and installation records | Supplier quality and commissioning teams |
| Changes | Effect of substitutes on all interfaces | Purchaser and responsible engineer |
Coordinate conductive connections and hardware
The connection hardware must be suitable for the supplied conductor and equipment terminal arrangement. Material compatibility, surface treatment, fastener details and tightening instructions require the relevant manufacturers’ confirmation. A bolt that fits through a hole does not establish an acceptable electrical connection.
Record the approved components and instructions in the installation package. Do not substitute lugs, washers, fasteners or surface preparations casually because a preferred part is unavailable. If a change is proposed, obtain an applicability review and update the controlled documents. The final installation record should identify the components actually used and any approved deviation.
Keep cable forces out of the electrical connection
Cables can impose mechanical loads during installation and service. The support arrangement should be designed so that the termination and equipment connection are not forced to carry unintended loads. Review the cable route, restraint and installation sequence with the actual compartment geometry, rather than assuming the termination itself provides all necessary support.
The project must define the relevant design conditions and approved restraint system. Do not derive support spacing or short-circuit restraint requirements from a cabinet photograph or a generic online example. Coordinate those matters with the cable system design and supplied equipment instructions. Record responsibility so that a gap between switchgear supply and site work does not remain unnoticed.
Review screening, bonding and earth interfaces
A shielded cable termination includes interfaces associated with the cable screen and earthing arrangement. The correct configuration depends on the cable system design and the supplied accessory. It must be coordinated with the switchgear earth arrangement and the project’s protection and operating requirements.
Do not assume that every cable screen should be connected in the same way merely because the cables enter the same room. The responsible engineer must establish the applicable bonding design and any associated components. The installation drawings should make that design clear, and commissioning records should verify the completed arrangement within the approved test boundary.
Check qualification evidence for the actual accessory
An accessory’s type-test evidence should be reviewed for applicability to the proposed cable and interface. The IEC 60502-4 catalogue describes a defined scope for accessory testing; it does not establish that every medium-voltage termination in every application is covered. Verify the applicable voltage range, cable system and project requirements using the full relevant documents.
Where a project falls outside a referenced standard’s scope, obtain the appropriate alternative basis. A different voltage family, special service environment or changed accessory design can require further review. Keep design qualification separate from site workmanship checks: a qualified accessory can still be installed incorrectly, while a neat-looking installation cannot create missing qualification evidence.
Make installation readiness a controlled hold point

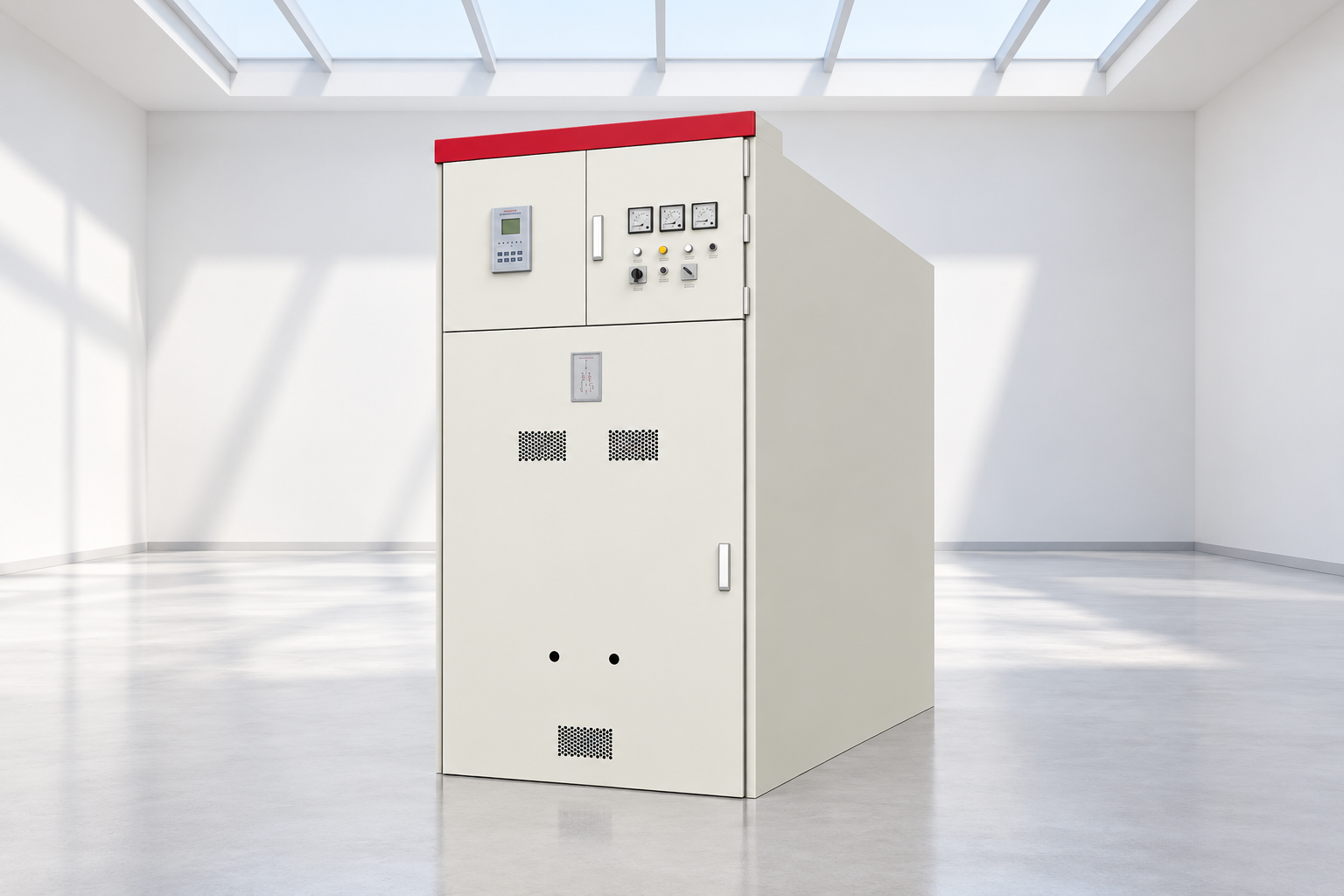

Before work starts, confirm that the correct accessory kits, cable data, approved drawings and current instructions are available. Verify personnel competence, the planned environment and the work controls required by the project. A missing or uncertain component should be resolved before the cable is prepared, since some preparation steps cannot be reversed easily.
Use a documented inspection plan to capture the evidence needed at the appropriate stages. The exact records should follow the accessory instructions and project quality requirements. This article does not prescribe a universal photograph set or acceptance dimension. The goal is to preserve enough traceable information to demonstrate that the approved method was followed for the actual components.
Define commissioning test boundaries before applying voltage
Cable tests can interact with connected switchgear, instrument transformers, surge devices and other equipment. The commissioning plan must identify which components are included or isolated and which test conditions are suitable for every included item. A cable test instruction should not automatically be applied to an entire connected assembly.
Qualified personnel and the responsible engineer must approve the actual test arrangement and restoration process. The report should state the boundary and any limitations clearly. Avoid treating a passed cable test as proof of every termination interface or all switchgear functions; the complete commissioning requirements still need their own checks and documented acceptance.
Control substitutions and handover records
A substitute cable or termination can change dimensions and compatibility even when the nominal voltage and conductor size remain the same. Require the parties to repeat the interface review for proposed substitutions. Update drawings, component schedules, instructions and applicable report references before the revised combination is installed.
At handover, retain the final cable and accessory identities, approved interface drawings, installation and inspection records, commissioning results and deviation closure. The operator should be able to identify the installed arrangement without opening the equipment or relying on an old quotation. This makes future maintenance and replacement more reliable and reduces the risk of repeating an unverified combination.
Frequently asked questions
Is cable entry size enough to select a termination?
No. Entry, support, electrical connection, insulation dimensions, stress control and installed envelope are separate but coordinated requirements. All must match the actual cable and switchgear arrangement.
Can two cables with the same conductor size use the same accessory?
Not automatically. Their insulation dimensions, construction and supported accessory ranges may differ. Check the exact cable data against the accessory manufacturer’s applicability information.
Why does a shielded cable termination need stress control?
The termination changes the cable’s normal insulation and screen geometry. A suitable accessory manages the electric stress at that transition using an approved design and installation method.
Can a cable test be applied with all switchgear components connected?
Only when the approved test plan establishes that the conditions are suitable for every included component. Define and verify the actual boundary before testing.
What records should a buyer retain?
Keep the cable and accessory identities, interface drawings, applicable qualification, approved installation instructions, inspection and commissioning records, and any accepted substitutions or deviations.
