A 10 kVA transformer can carry 10,000 VA of apparent load at its rated conditions. That is 8 kW at a load power factor of 0.8 or 9 kW at 0.9. Its current is not fixed: at 240 V single phase the calculated full-load current is 41.7 A, while at 400 V three phase it is 14.4 A. Before buying, match the primary and secondary voltages, phase, frequency, construction, installation conditions and protection arrangement to the actual project. A 10 kVA label alone does not establish the size, weight, loss, enclosure or suitability of a particular model.
What a 10 kVA Transformer Rating Tells You
The rating is apparent power, expressed in kilovolt-amperes. It describes the voltage-current capacity of a transformer under its specified conditions. It is not an energy figure in kilowatt-hours, and it is not automatically 10 kW of usable real power for every load. Real power depends on the power factor of the connected equipment: kW = kVA × power factor. At 0.8 power factor, 10 × 0.8 = 8 kW; at 0.9, the result is 9 kW. These are examples at the full 10 kVA apparent-power level, not promises that a particular unit can operate at every site condition.
There is no universal “10 kVA transformer” design. A single-phase control or distribution unit, a three-phase isolation transformer and an outdoor pole-mounted transformer can share the same kVA number but have different electrical connections, insulation systems, enclosures and installation requirements. The product listings that rank for this search commonly specify a voltage pair, phase and construction alongside the rating. Buyers should ask for those details rather than treating kVA as a complete product specification.
10 kVA Transformer Full-Load Current by Voltage
For a single-phase winding, calculate current as I = 10,000 ÷ V. For a balanced three-phase winding, line current is I = 10,000 ÷ (√3 × V), where V is the line-to-line voltage. The same apparent power gives different current on the primary and secondary sides when the voltage changes. The formulas follow the relationships explained in Schneider Electric’s transformer capacity guidance and the Electrical Installation Guide.
| Winding voltage | Single-phase full-load current | Three-phase full-load line current |
|---|---|---|
| 120 V | 83.3 A | 48.1 A |
| 208 V | 48.1 A | 27.8 A |
| 230 V | 43.5 A | 25.1 A |
| 240 V | 41.7 A | 24.1 A |
| 400 V | 25.0 A | 14.4 A |
| 415 V | 24.1 A | 13.9 A |
| 480 V | 20.8 A | 12.0 A |
For example, a 480 V to 240 V single-phase transformer rated 10 kVA has calculated full-load currents of about 20.8 A on the 480 V side and 41.7 A on the 240 V side. A 400 V three-phase secondary carries about 14.4 A of balanced line current at the same rating. Never combine the 240 V single-phase answer with a three-phase product or use a 120 V line-to-neutral voltage in place of a 208 V three-phase line-to-line voltage.
How Much Load Can a 10 kVA Transformer Handle?
Start with the coincident apparent-power demand of the loads, not just the arithmetic sum of equipment nameplate currents at different voltages. If a balanced 400 V three-phase load draws 10 A, its apparent power is √3 × 400 × 10 ÷ 1,000, or about 6.9 kVA. This leaves some apparent-power headroom below 10 kVA, but the remaining margin is not automatically available for a motor start or a hot enclosure. For a 240 V single-phase load drawing 30 A, apparent power is 240 × 30 ÷ 1,000 = 7.2 kVA.
List every connected load with voltage, phase, running kW or kVA, power factor and expected operating schedule. Identify which loads run simultaneously, which have high starting current, and whether variable-speed drives or other nonlinear equipment produce harmonics. Convert the simultaneous duty to kVA using the relevant voltage and phase. Compare the highest realistic operating case with the proposed transformer’s documented continuous rating and installation limits. Do not assume that every connected load operates at full nameplate power at once, but do not ignore a starting or transient condition simply because the steady-state total is below 10 kVA.
A common shortcut is to multiply 10 kVA by 80% and declare 8 kVA to be a universal maximum. That confuses a design allowance or a rule for a particular protection arrangement with the transformer nameplate rating. The 8 kW figure at 0.8 power factor is also different: it is a real-power conversion from a 10 kVA apparent load. Cooling, ambient temperature, altitude, enclosure ventilation, permissible temperature rise and loading duration must be checked against the specific manufacturer’s information.
Single-Phase or Three-Phase: Which 10 kVA Unit Fits?
Choose phase to match the source and loads. A single-phase transformer is often appropriate for a single-phase supply or circuit. A three-phase unit serves a balanced three-phase distribution requirement and may have different winding connections, neutral arrangements and line currents. A three-phase unit is not simply a single-phase unit with three output terminals. Check the nameplate diagram and the planned primary and secondary system, including the grounding method and whether line-to-neutral loads need a neutral.
Supply frequency also matters. A transformer designed for one frequency should not be assumed suitable at another frequency without manufacturer confirmation. The specified primary and secondary voltages must match the actual system, including taps or voltage variation if required. A nominal 480-to-240 V step-down arrangement is a different design question from a 400-to-230 V arrangement, even though both could be rated 10 kVA. The required isolation, impedance, enclosure, environmental rating and connection group may change the quote substantially.
Dry-Type, Oil-Immersed and Isolation Options

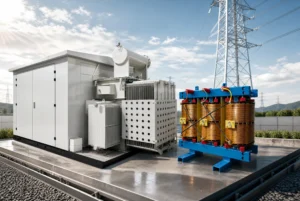

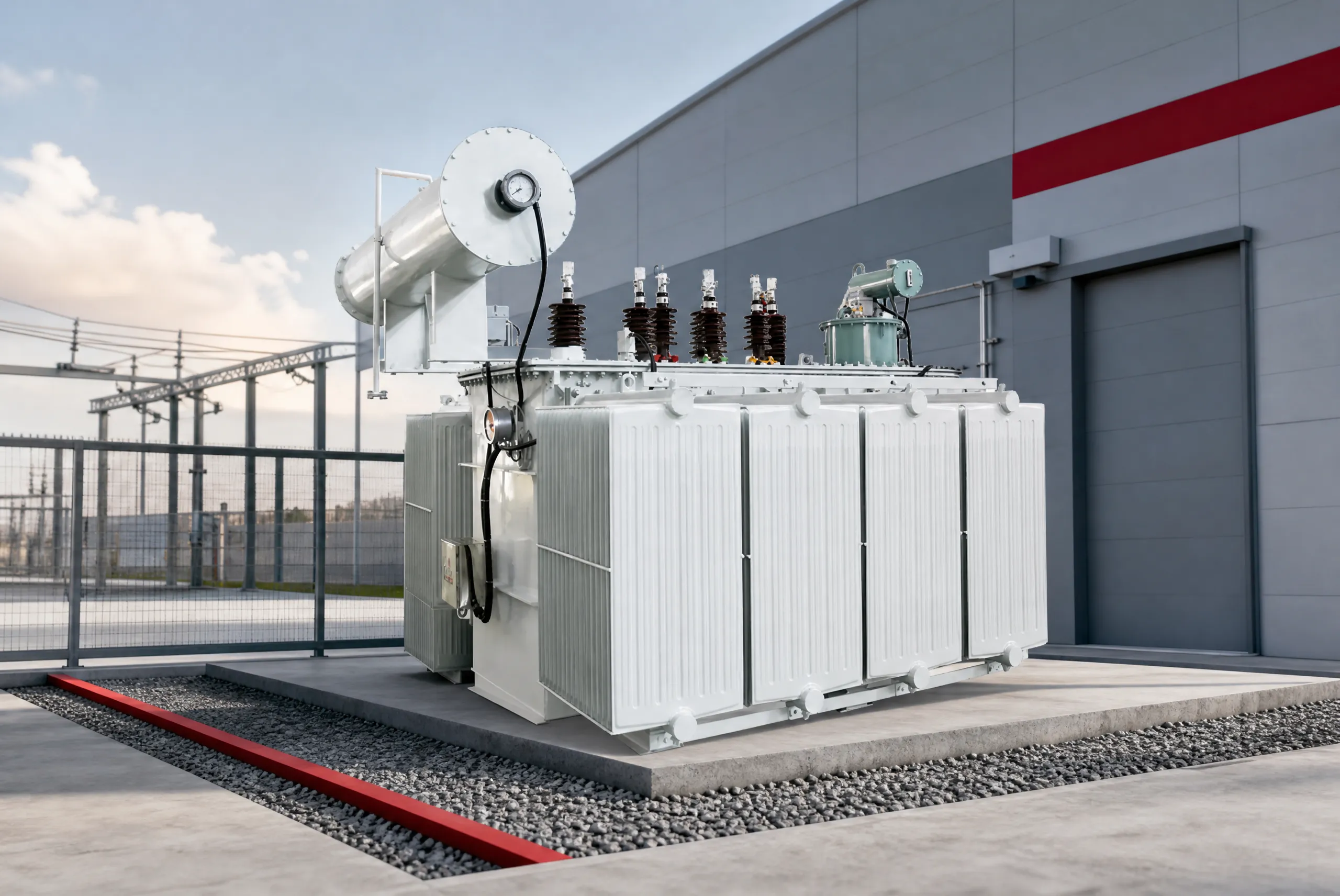

A dry-type transformer uses an air-cooled insulation arrangement and may be selected for indoor distribution or equipment applications when its specified environment and enclosure are suitable. An oil-immersed transformer uses liquid insulation and cooling and may suit different outdoor or utility arrangements. An isolation transformer describes an electrical function: separate primary and secondary windings. These categories are not mutually exclusive, and none can be chosen from the kVA value alone. Ask the supplier for the actual construction, cooling method, enclosure and tests applicable to the proposed unit.

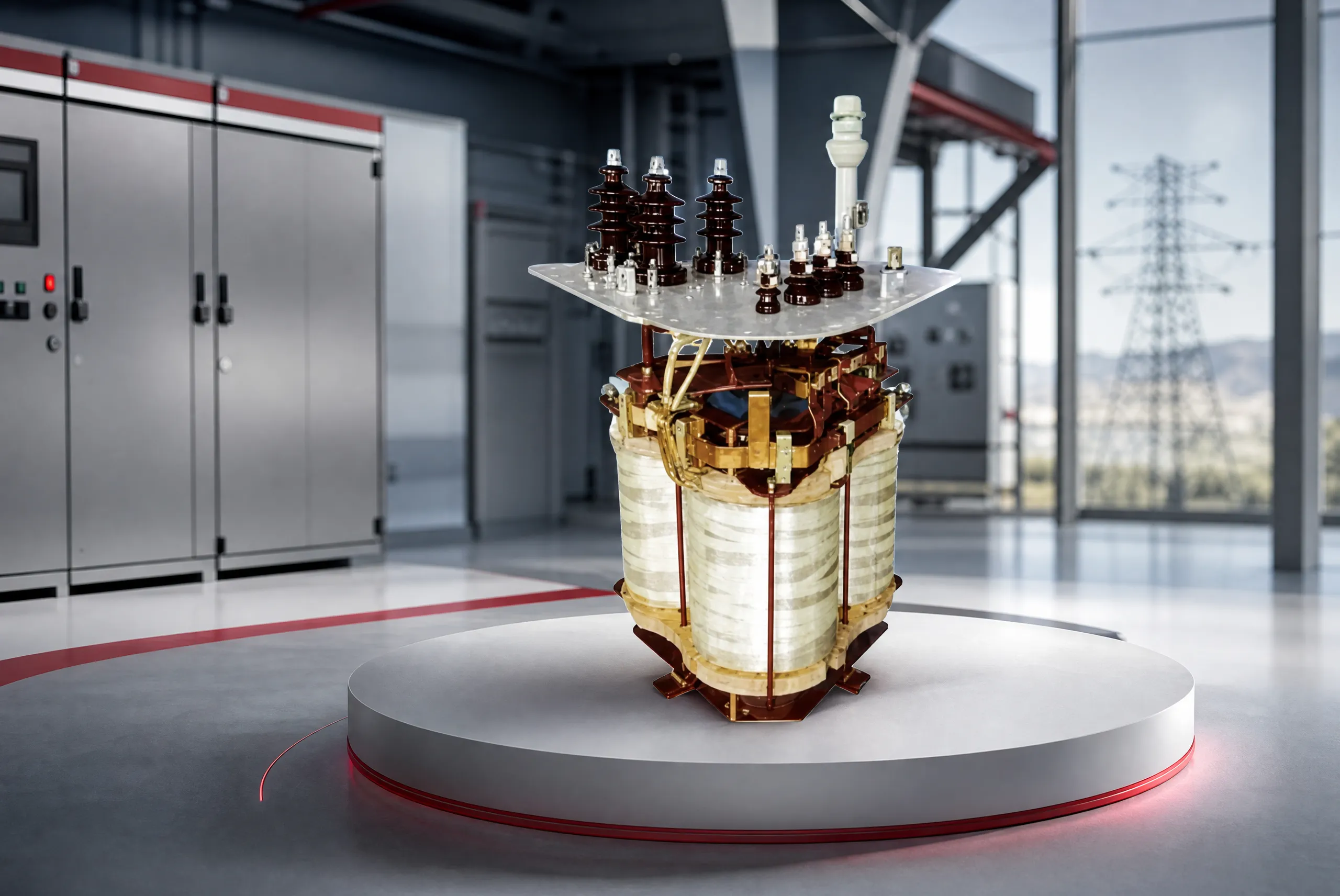

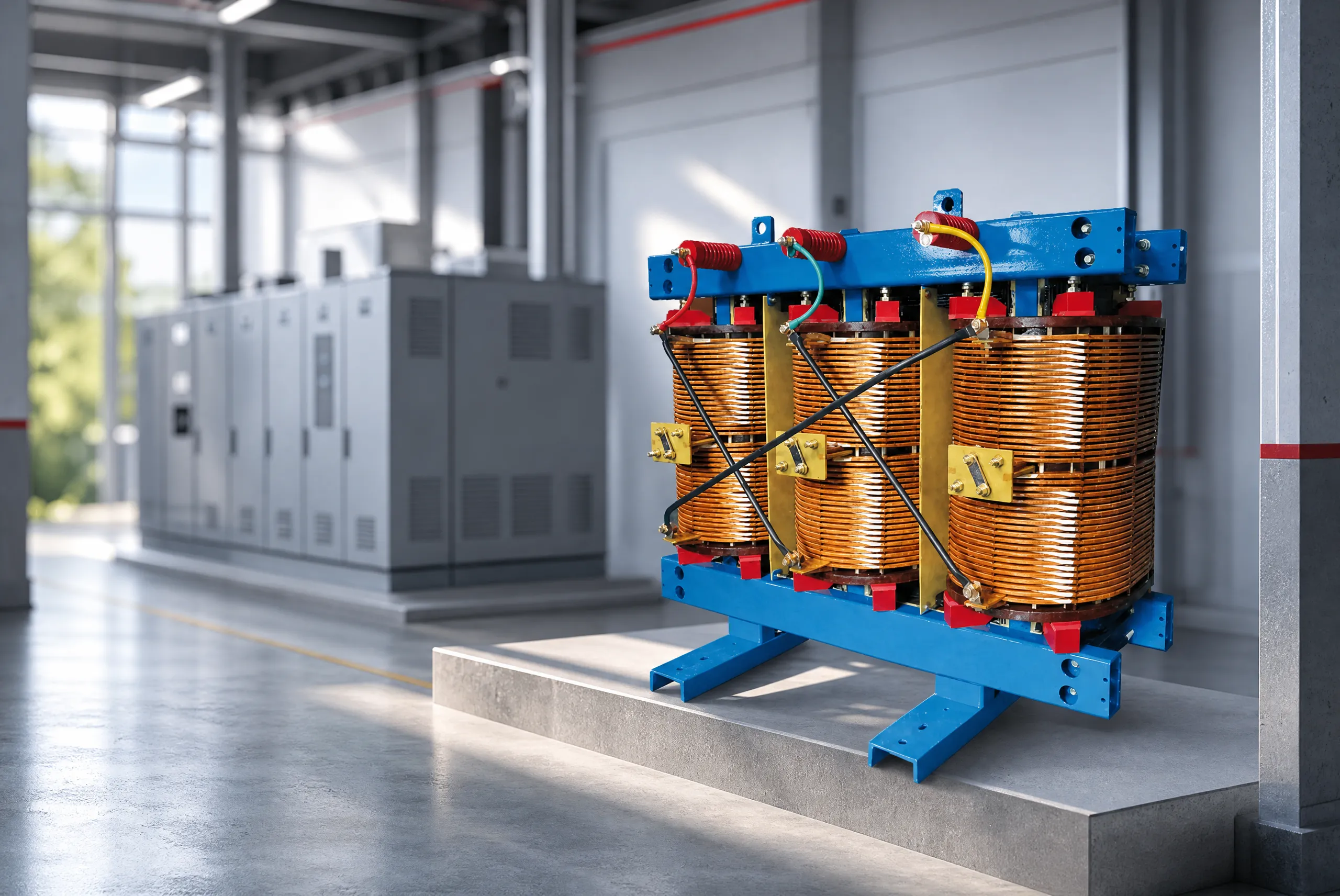

The site’s resin-insulated dry-transformer series illustrates one product family, while the dry-type transformer guide explains that construction in more detail. Neither page should be read as proof that a 10 kVA variant is stocked or available. If your project requires exactly 10 kVA, send the complete electrical schedule and request a confirmed model, drawing and quotation.
Dimensions, Weight, Losses and Price
There is no reliable universal size, weight or price for all 10 kVA transformers. Physical dimensions depend on the voltage ratio, frequency, phase, insulation class, core design, cooling, enclosure, impedance and accessories. An outdoor enclosure can change the footprint even when the electrical rating is unchanged. A published dimension from one supplier’s product should not be copied into another supplier’s quote. Obtain an approved outline drawing, mounting details and shipping weight for the exact model before planning a cabinet or lifting arrangement.
Compare no-load and load losses using a common rated basis. A lower purchase price can be outweighed by higher operating losses over the project’s lifetime, but a meaningful comparison needs the expected load profile, energy cost and service period. Ask the supplier to identify the applicable test method and guaranteed values. The general framework for power-transformer rating and testing is described by IEC 60076-1; the exact project standard and product scope still have to be agreed for the offered unit.
Protection, Installation and Safety Checks
Full-load current is an input to protection design, not a breaker or fuse size by itself. Transformer energization can cause inrush, and primary-only versus primary-and-secondary protection are different arrangements. Conductors, short-circuit duty, grounding and local electrical rules also affect the design. A qualified electrical designer should select protection for the specific transformer and installation rather than multiplying a table current by a universal percentage.
Before energization, confirm the primary and secondary connections against the manufacturer’s diagram. Check that the supply voltage and frequency, tap setting, phase arrangement and grounding match the project drawings. Provide the required clearances and ventilation; do not place a dry-type unit in a sealed cabinet unless its enclosure and cooling were designed for that condition. Inspect the nameplate, shipping condition and test documentation. If the transformer is part of a larger distribution assembly, coordinate its protection and cable terminations with the upstream and downstream equipment.
10 kVA Transformer Inquiry Checklist
| Item to specify | Why it changes the selection |
|---|---|
| Primary and secondary voltage, taps, frequency | Determines the required winding design and actual line current. |
| Single- or three-phase; connection and neutral | Determines the supply compatibility and load connection. |
| 10 kVA continuous duty and load profile | Allows checking operating temperature, starting and harmonics. |
| Dry-type or oil-immersed, indoor or outdoor | Changes cooling, enclosure, footprint and maintenance needs. |
| Losses, impedance, tests and standard | Enables technical and lifetime-cost comparison. |
| Outline drawing, mass, terminals and accessories | Allows installation and logistics planning. |
When asking for a quote, include the site country and electrical code, expected ambient conditions, available supply, load schedule and installation drawings. If you are still estimating the rating, see the amps-to-kVA formula guide, the 63 kVA load example and the standard transformer sizes guide. A selected 10 kVA model should be confirmed from a manufacturer’s technical data sheet, not inferred from a general article.
Three-Phase Transformer Video Lesson
NPTEL’s university lecture provides background on three-phase transformer connections. The calculation and buying checks above remain self-contained; the video is optional further learning.
Watch NPTEL’s Introduction to Three Phase Transformer on YouTube.
Frequently Asked Questions
How many amps is a 10 kVA transformer?
At 240 V single phase, its calculated full-load current is 41.7 A. At 400 V three phase, balanced line current is about 14.4 A. Voltage and phase must be specified with any ampere answer.
How many kW can a 10 kVA transformer supply?
At 0.8 load power factor, a full 10 kVA apparent load corresponds to 8 kW; at 0.9 it corresponds to 9 kW. Actual permissible duty also depends on the unit and installation.
Can a 10 kVA transformer run a 10 kW load?
Only at unity power factor would 10 kW equal 10 kVA mathematically. Many real loads operate below unity power factor, and starting, harmonic and thermal conditions need separate checking. Do not select on kW alone.
What is the size of a 10 kVA transformer?
There is no one dimension or mass. Request the approved drawing and weight for the exact voltage, phase, construction and enclosure being quoted.
