A pad-mounted transformer is a ground-level, tamper-resistant distribution transformer connected to underground primary and secondary cables; selection covers radial or loop feed, dead-front or live-front interfaces,…
Three-phase transformer price is driven by kVA, voltage class, winding material, dry or liquid construction, losses, impedance, enclosure, accessories, testing, freight and lead time; a useful quote comparison therefore…

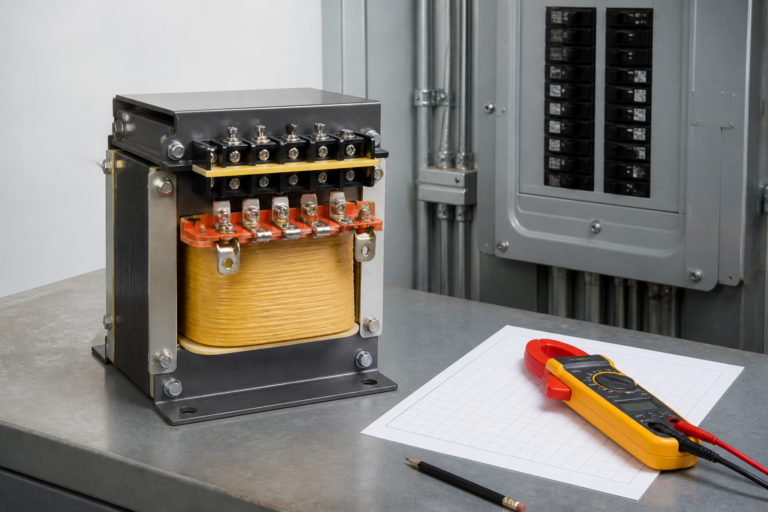

A buck-boost transformer makes a relatively small voltage correction by adding or subtracting a winding voltage, often in an autotransformer connection; it can correct 208 V toward 230/240 V or reduce a slightly high…

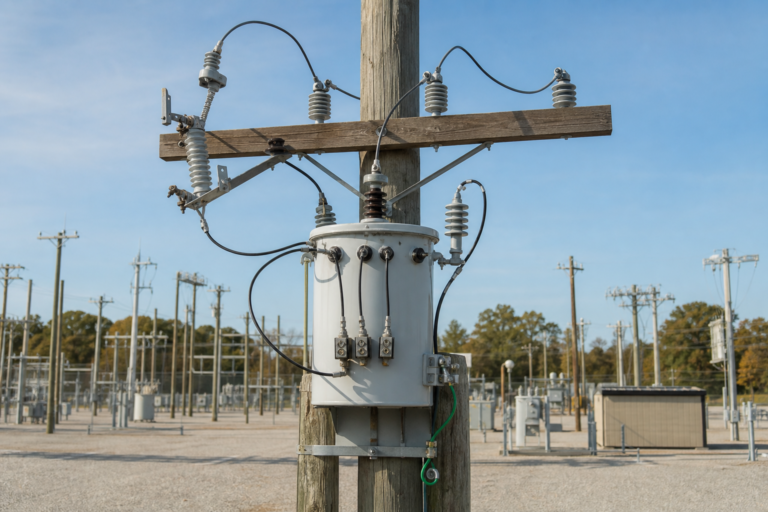

A pole-mounted transformer diagram should distinguish the utility primary circuit, surge arrester and cutout, transformer primary bushing, secondary bushings or terminals, neutral, tank bond, grounding conductor and…
A 45 kVA transformer is commonly used for commercial and light-industrial three-phase loads; at full load it carries about 54.1 A at 480 V three phase and 124.9 A at 208 V three phase. Those currents are calculation…
A step-up transformer raises secondary voltage and lowers current, while a step-down transformer lowers voltage and raises current; the physical transformer can sometimes perform either role, but insulation, taps, grounding, inrush and manufacturer approval must match the intended direction. The turns ratio establishes the approximate voltage ratio, while kVA remains nearly constant excluding losses. Application selection must also address phase, frequency, connection, impedance, regulation and protection.
Transformer primary protection limits damage from overloads and faults while tolerating magnetizing inrush and coordinating with secondary protection; common devices include current-limiting or expulsion fuses, circuit…
A delta-wye transformer connection uses a closed delta on one winding and a grounded or ungrounded wye on the other, creating a 30-degree phase displacement and providing a neutral when the wye point is brought out. The…
Transformer parts work as one thermal, dielectric, magnetic and mechanical system: the core and windings transfer energy, insulation controls electric stress, the tank and cooling circuit remove heat, bushings connect…
