Transformers are vital for distributing electricity throughout the electrical engineering sphere. Of these transformers many people are interested in the 630KVA dry type transformer. In this publication, you will be supported in gaining an understanding of a 630 KVA dry type transformer, its attributes, benefits & uses and frequently asked questions.
What Is a Dry Type Transformer?
Dry transformers are classified according to how they are cooled; instead of using liquid insulation to transfer heat away from a dry transformer, air is relied on to cool the unit off through its natural thermal cycle. Most dry-type transformers are made with resin-insulated windings that provide a very safe and efficient means of providing electrical service in a safe and efficient manner. Many places, especially those that are relatively safe from fire hazards, desire to use Dry-Type Transformers over conventional transformers as residential, commercial and industrial electrical customers.

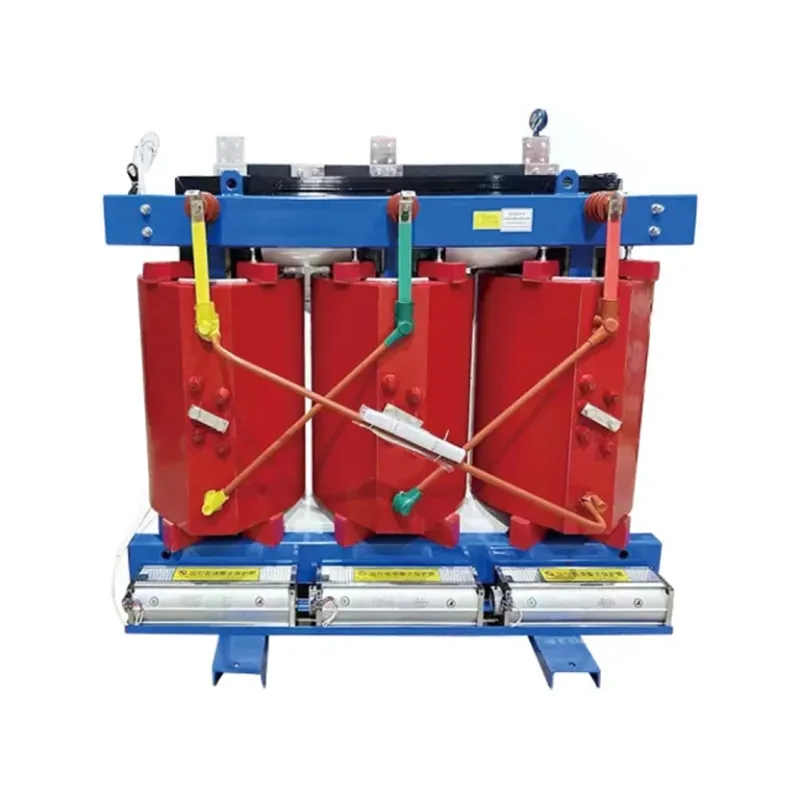

Key Features of a 630KVA Dry Type Transformer
This dry-type transformer is rated at 630 kilovolt-amperes (KVA) of power, also known as its 630KVA dry-type transformer rating. This means that it is capable of handling a large amount of load, making it an ideal choice for large-scale use. Some of the main features of this transformer are:
- High Efficiency: Offers reduced losses during operation.
- Environmentally Friendly: No harmful liquids involved in the operation.
- Durability: Designed for high performance, even in extreme conditions.
What Is the Impedance of a 630 KVA Transformer?
An important factor in the operation and performance of any transformer is its impedance. In a 630 kVA transformer, the impedance typically varies between 3% and 6%. This percentage represents the amount of voltage drop that will occur at full load and is therefore extremely important to the performance of a power distribution system.
IEC Standards for Dry Type Transformers
International transformer standards, including IEC (International Electrotechnical Commission) ones, support safety and reliability for these devices. When using dry-type transformers, the primary international standard to consider is IEC 60076. This is an international standard that specifies the requirements regarding a transformer’s design, performance and testing to confirm the device’s safety, reliability, and efficiency that are needed for today’s applications.
Applications of 630KVA Dry Type Transformers
The 630 KVA dry type transformer is commonly used in a variety of industries as it is versatile. Some examples of common applications include:
- Industrial plants and factories.
- Commercial buildings, including shopping malls and hospitals.
- Renewable energy installations, such as wind and solar power facilities.
Advantages of 630KVA Dry Type Transformers
The advantages of utilizing a 630KVA dry type transformer are compelling:
- Safety: Reduced fire risk due to the lack of oil.
- Maintenance: Requires less upkeep compared to oil-filled transformers.
- Space-efficient: They usually have a smaller footprint, making them easier to install in confined spaces.
- Low Noise Levels: Dry type transformers are generally quieter than oil-filled alternatives.
Frequently Asked Questions
What Is the Lifespan of a Dry Type Transformer?
Depending on how it was installed, where it is located, and how well it is maintained, a dry-type transformer may last up to or beyond thirty years.
How Do I Choose the Right Transformer for My Needs?
When selecting the appropriate transformer, consider the load you will be servicing, how you will be using it (environmentally), safety, and industry standards that may be required for your application.

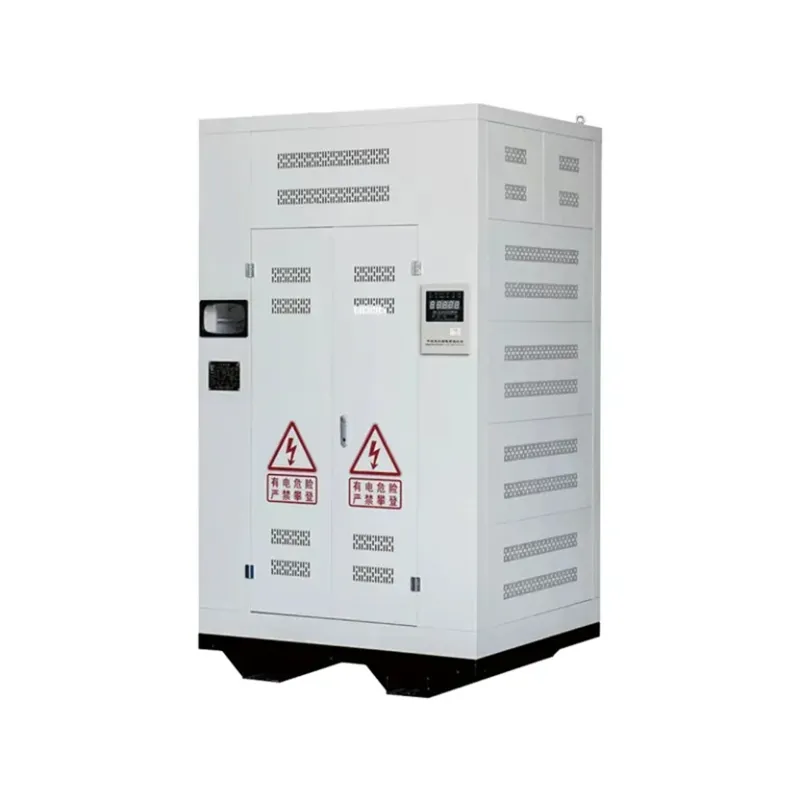

Can 630 KVA Dry Type Transformers Be Used Outdoors?
There are several manufacturers that produce dry-type transformers that can be used outdoors. Typically these types of transformers are designed with weatherproof enclosures and/or other protective devices to protect against various environmental factors including moisture, dust, and extreme temperatures.
What Are the Benefits of Resin Insulation in Dry Type Transformers?
Insulation made from resin has great thermal and electrical properties making it a long-lasting and safe material. In addition to being resistant to short circuiting, resin insulation will protect the transformer from becoming contaminated and will therefore have a much longer life span as a transformer.
What Is the Efficiency of a 630KVA Dry Type Transformer?
Dry-type transformers operate very efficiently (typically greater than 95%) depending upon their design and how much power they’re supplying. High efficiency means less wasted electricity thus reducing the cost of operating dry-type transformers.
Can I Retrofit a 630KVA Dry Type Transformer in an Existing System?
Absolutely! It is possible to retrofit dry type transformers. If you are considering retrofitting your existing transformer, make sure it meets the necessary electrical specifications for operation and will be adequately ventilated by your power system. An experienced engineer would be able to assist you with the most appropriate plans for a safe and effective retrofitting project.
Conclusion
The 630KVA dry type transformer is a dependable and economical option for many different types of electrical distribution systems. If you plan to buy one, it is important that you understand how this type of transformer works, the standards that apply to them, and what they can do. The 630KVA dry type transformer is an excellent option for modern electrical systems as more and more companies focus on safety and efficiency while still providing power. In addition to having many uses, the 630KVA dry type transformer has a low-maintenance profile, making it a low-cost option both in residential applications and in industry.
