The essence of a dry type distribution transformer is the means by which it is able to connect to an electrical distribution system and provide the electrical energy needed for the safe and reliable distribution of electrical energy at different voltage levels. Unlike a standard oil type transformer that uses liquid insulation and liquid cooling, the dry type transformer utilizes air or solid insulation material to provide its electrical insulation; this method of construction makes the dry type transformer well suited for many different types of applications; especially where safety and environmental issues are a major concern.
Advantages of Dry Type Distribution Transformers
The benefits associated with employing a dry type distribution transformer are numerous and can meet many different requirements.
1. Fire and Environmental Safety: Because they do not use oil, these transformers eliminate the potential hazards and risks associated with oil leaks and fire. They can be used for indoor applications, building uses, and for urban areas where there is a higher density of people.
2. Adequate Maintenance Expenses: Due to a limited number of parts that can fail and wear out, dry transformers generally demand less maintenance when compared to oil-filled transformers, which can lead to a decrease in the total cost of operation as time passes.
3. Compact Size: Because dry type transformers have a more compact footprint, they can be accommodated easily within confined areas, which is frequently the case in urban applications.
Types of Dry Type Distribution Transformers
There are several types of dry type distribution transformers that serve different purposes:

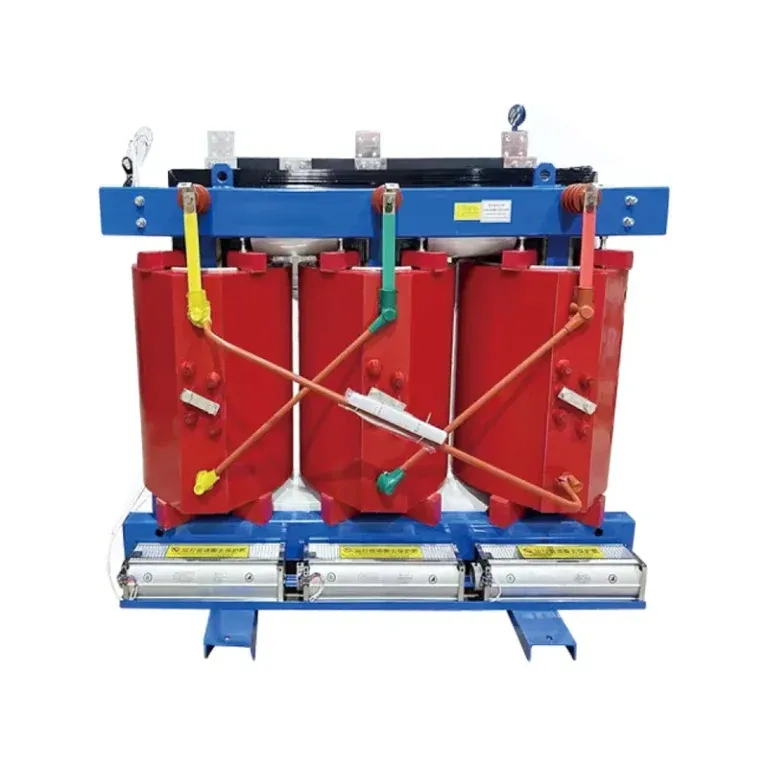

1. Cast Resin Transformers: The Cast Resin Transformer is widely regarded as the most popular type of dry type transformer due to the fact that they are completely encapsulated (enveloped) in resin which gives them superior insulation qualities and moisture resistance.
2. The vacuum pressure-impregnated (VPI) transformers are impregnated with resin exposed at atmospheric pressure, producing increased strength and durability that will enable them to perform better in demanding conditions than standard transformers.
3. Open Type Transformers: These transformers are less prevalent than enclosed types, mainly due to being more susceptible to the elements. They are a good option for specific applications, especially when price is important but the protection of the transformer is not a major issue.
Applications of Dry Type Distribution Transformers
Because of their wide-ranging capabilities, the many uses dry type transformers have for differing applications can be summarized as follows:
They provide many benefits such as reduced power consumption, energy-efficient designs, long lifespan, and low operating costs. Because of these factors, they are often used in commercial buildings such as office complexes, retail stores, and hotel properties.
Industrial Sites – Numerous manufacturing and processing establishments are utilizing dry type transformers to supply power to machines and equipment safely.
As the globe transitions to more eco-friendly energy systems, dry type transformers frequently installed in wind and solar power installations due to their capacity to accommodate fluctuation loads from changing weather patterns.
Frequently Asked Questions
What are the uses of a dry type distribution transformer?
Distribution transformers of dry type are most commonly employed in reducing high voltage power to a form which is suitable for miscellaneous uses (residential, commercial, and industrial).
What are the advantages of a dry type distribution transformer?
Some of the biggest benefits of using these types of facilities include increased safety, reduced environmental impact, less ongoing maintenance, and more compact than traditional facilities; thus, they are well-suited for use indoors.
What are the application areas of dry type distribution transformers?
Many commercial buildings, industrial applications, and renewable energy systems make extensive use of them because they are considered reliable and safe.
To summarize, a dry type distribution transformer features both efficiency and safety characteristics. Therefore, they represent an important component of contemporary electric power systems’ infrastructure due to their widespread use across many applications and industries.
