Photovoltaic connectors are touch-protected DC plug-and-socket components used to join modules, strings, extension cables, and equipment; safe performance depends on matched connector families, correct cable and contacts, calibrated crimping, full mating, strain relief, and environmental qualification.
Key Takeaways
- Identify the exact duty and system boundary before selecting equipment.
- Verify ratings, protection, environment, interfaces, and maintainability together.
- Use qualified personnel and project-specific standards for final decisions.
Quick Selection Table
| Decision area | Practical meaning | Project check |
|---|---|---|
| Connector anatomy and current path | A PV connector includes male and female contact elements, insulated housings, seals, locking features, cable glands, and strain relief. | Verify drawings, ratings, interfaces, environment, protection, and acceptance evidence. |
| Why cross-mating is risky | Similar-looking connectors from different makes are not automatically compatible. | Verify drawings, ratings, interfaces, environment, protection, and acceptance evidence. |
| Voltage, current, and cable selection | Verify maximum system voltage after cold-temperature correction, circuit current, conductor material, insulation diameter, temperature range, pollution exposure, and applicable listing. | Verify drawings, ratings, interfaces, environment, protection, and acceptance evidence. |
| Correct crimp and assembly | Strip only the specified length without nicking strands. | Verify drawings, ratings, interfaces, environment, protection, and acceptance evidence. |
| Mating, routing, and strain relief | Never connect or disconnect under load unless the device is expressly rated for it. | Verify drawings, ratings, interfaces, environment, protection, and acceptance evidence. |
| Inspection and thermal troubleshooting | Look for incomplete engagement, cracked housings, UV damage, loose glands, corrosion, water marks, discoloration, and unsupported cable. | Verify drawings, ratings, interfaces, environment, protection, and acceptance evidence. |
Connector anatomy and current path
A PV connector includes male and female contact elements, insulated housings, seals, locking features, cable glands, and strain relief. Gender terminology can be confusing because the housing and metal contact may appear opposite; use manufacturer part numbers and drawings.
Record the assumptions behind every rating. Nameplate values, the one-line diagram, cable schedule, protection study, ambient conditions, and operating history should agree before a decision is approved. If they do not, stop and resolve the discrepancy rather than choosing a component from a catalogue description.
Why cross-mating is risky
Similar-looking connectors from different makes are not automatically compatible. Tolerance, plating, spring force, seal geometry, polymer, and qualification can differ. A mixed pair can initially pass current yet develop contact resistance, heating, water ingress, or an arc later.
Treat safety as a design input. Isolation, lockout/tagout, verification of absence of voltage, grounding, stored-energy control, approach boundaries, and suitable personal protective equipment must follow the site procedure and applicable law. Only qualified personnel should open, test, connect, or lift energized-power equipment.
Voltage, current, and cable selection
Verify maximum system voltage after cold-temperature correction, circuit current, conductor material, insulation diameter, temperature range, pollution exposure, and applicable listing. Connector ampacity is conditional on the approved contact and cable combination.
For procurement, state the required standard, ratings, environment, interfaces, routine tests, drawings, certificates, spare parts, and acceptance criteria. Ask suppliers to list deviations explicitly. Comparable bids are possible only when every bidder is answering the same technical requirement.

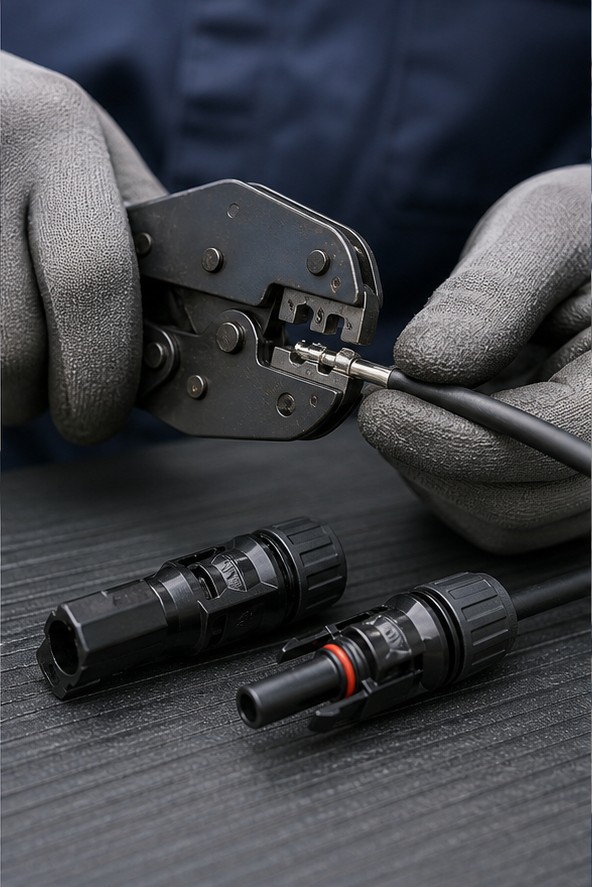

Correct crimp and assembly
Strip only the specified length without nicking strands. Use the contact, locator, and calibrated crimp tool defined for that connector. Inspect crimp geometry and pull retention, seat the contact fully, tighten the gland to instructions, and keep sealing surfaces clean.
For maintenance, establish a clean baseline at commissioning and trend condition rather than relying on one isolated measurement. Photographs, torque records, insulation results, thermography, event logs, and oil or component tests can reveal change before it becomes an outage.
Mating, routing, and strain relief
Never connect or disconnect under load unless the device is expressly rated for it. Listen or feel for full engagement, verify locking, support cables away from sharp edges and standing water, avoid tight bends, and prevent connector pairs from bearing cable weight.
Record the assumptions behind every rating. Nameplate values, the one-line diagram, cable schedule, protection study, ambient conditions, and operating history should agree before a decision is approved. If they do not, stop and resolve the discrepancy rather than choosing a component from a catalogue description.

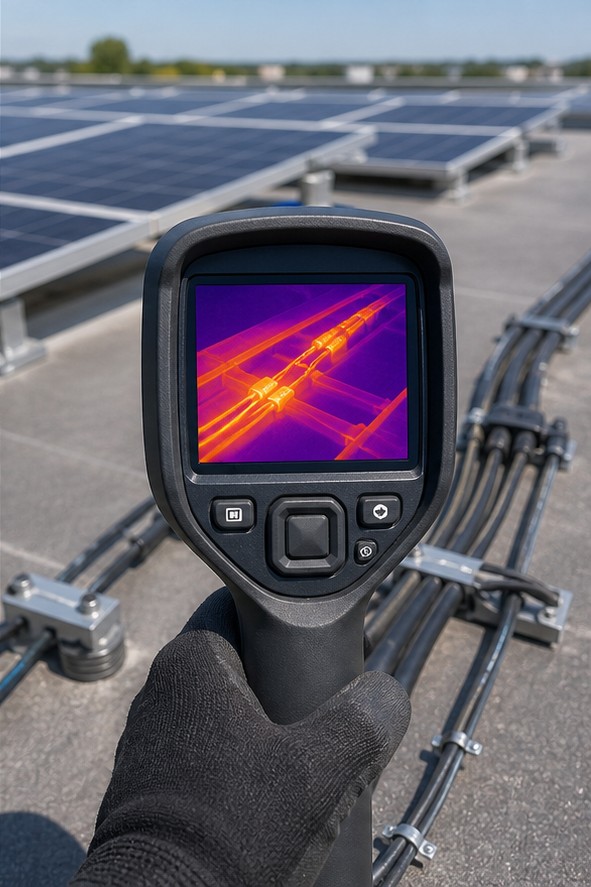

Inspection and thermal troubleshooting
Look for incomplete engagement, cracked housings, UV damage, loose glands, corrosion, water marks, discoloration, and unsupported cable. Thermography under meaningful load can identify abnormal heating, but temperature differences require safe access and comparison with similar circuits.
Treat safety as a design input. Isolation, lockout/tagout, verification of absence of voltage, grounding, stored-energy control, approach boundaries, and suitable personal protective equipment must follow the site procedure and applicable law. Only qualified personnel should open, test, connect, or lift energized-power equipment.
Replacement and field repairs
De-energize and verify the circuit, replace both halves of a suspect or mixed pair with one approved family, and remake the cable end using specified tools. Do not clean up a heat-damaged contact and reuse it; heat can degrade both metal and housing.
For procurement, state the required standard, ratings, environment, interfaces, routine tests, drawings, certificates, spare parts, and acceptance criteria. Ask suppliers to list deviations explicitly. Comparable bids are possible only when every bidder is answering the same technical requirement.
Specification and quality control
State connector standard, voltage, current, cable sizes, conductor construction, temperature, ingress protection, UV exposure, mating-cycle need, tool set, traceability, and documentation. Control receiving inspection and installer training across the project.
For maintenance, establish a clean baseline at commissioning and trend condition rather than relying on one isolated measurement. Photographs, torque records, insulation results, thermography, event logs, and oil or component tests can reveal change before it becomes an outage.
Practical Specification Workflow
- Define normal, abnormal, and contingency operating cases.
- Collect verified system and nameplate data.
- Select the governing codes and standards.
- Calculate continuous, short-time, and fault duties.
- Coordinate protection, isolation, grounding, and controls.
- Check environment, layout, transport, installation, and service access.
- Issue drawings, tests, documentation, and acceptance criteria.
- Review deviations before placing the order.
How to Review a Supplier Submittal
Begin with a compliance matrix instead of a brochure. Check every requested rating and interface against the supplier drawing, data sheet, calculation, and test plan. Confirm that stated values apply to the offered configuration, enclosure, ambient temperature, altitude, and accessories. Resolve exclusions involving protection, terminals, controls, monitoring, installation, commissioning, and spare parts before approval. Where a standard permits alternatives, record which option has been supplied.
Next, test the proposal against credible operating events: maximum and minimum voltage, peak load, starting or energization, external fault, loss of cooling, maintenance isolation, communication failure, and the planned contingency. Confirm access for inspection and component replacement. Require final as-built drawings, nameplate schedules, routine-test reports, settings, manuals, and a clear warranty contact. This review prevents a technically plausible product from arriving with the wrong interfaces or incomplete scope.
Related LBAJI Resources
Review the relevant LBAJI equipment page, the main technical guide, and the related articles on system selection and safety and installation or application planning. For a quotation, provide the one-line diagram, ratings, quantity, environment, and required standards.
Educational Video
This independent video provides useful visual background for the equipment and electrical principles discussed above.
Frequently Asked Questions
Is this equipment safe to work on while energized?
No general article can authorize energized work. De-energize whenever feasible and follow the site electrical-safety program, risk assessment, and qualified-person requirements.
Which nameplate data should be recorded first?
Record manufacturer, model, serial number, voltage, phase, frequency, current or kVA, insulation or interrupting ratings, connection, cooling, and all accessory data relevant to the application.
Can a replacement be chosen from dimensions alone?
No. Mechanical fit does not prove electrical, thermal, protective, environmental, or interface compatibility.
What should be included in a supplier quotation?
Require ratings, standards, drawings, deviations, routine tests, documentation, warranty, lead time, spares, and site or commissioning scope.
Who should approve the final design?
A qualified engineer and the responsible owner, utility, authority, or safety organization should approve the design according to the jurisdiction and project scope.
Technical References
Conclusion
Photovoltaic connectors are touch-protected DC plug-and-socket components used to join modules, strings, extension cables, and equipment; safe performance depends on matched connector families, correct cable and contacts, calibrated crimping, full mating, strain relief, and environmental qualification. Final selection, installation, testing, and maintenance must be based on project data and approved procedures rather than a general web guide.
